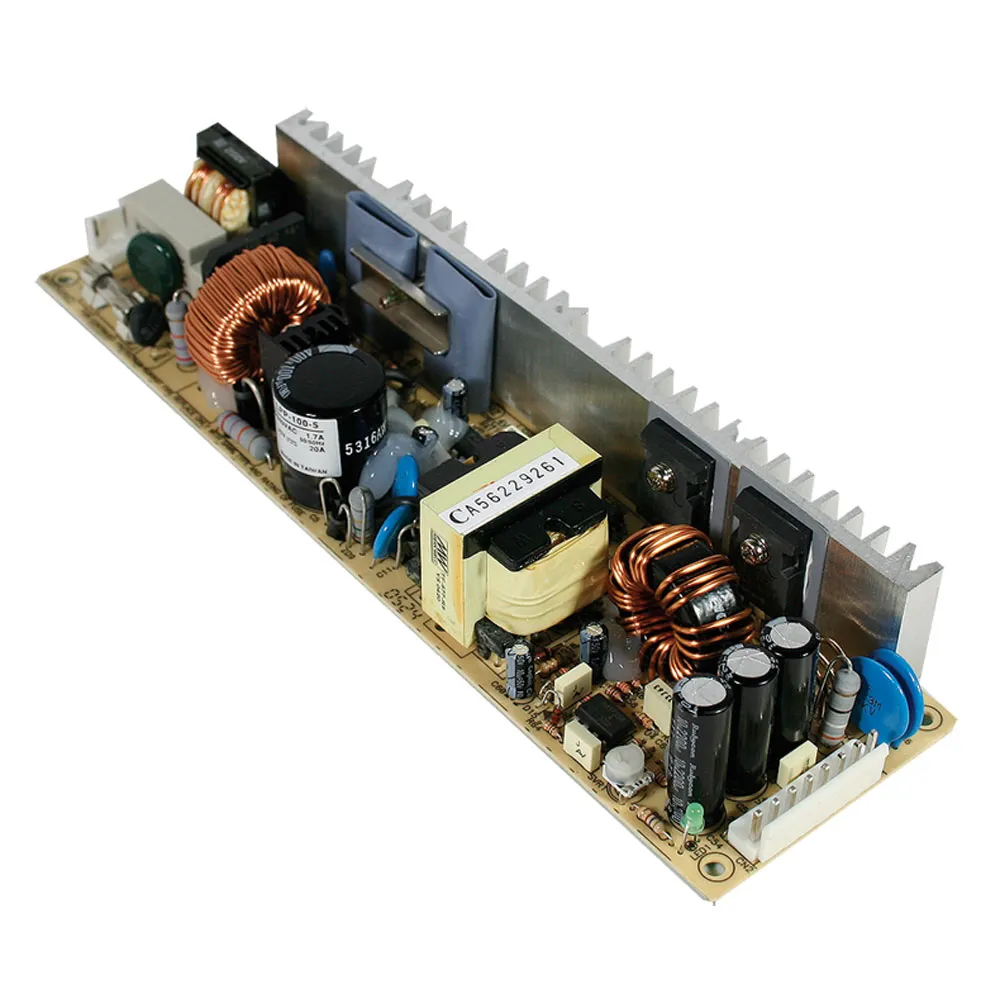

66 W Single Output with PFC Function
3.3 Volts @ 20 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- 3 years warranty
Product Identification
Manufacturer Series:LPP-100
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL
Dimensions & Appearance
Style:Open Frame
Height:1.30 in.
Width:2.40 in.
Length:8.70 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.7 A
Output
Number of Outputs:1
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:3.3 VDC
Additional Output Voltages (VDC):N/A
Output Current:20 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:69%
Power Rating:66 W
