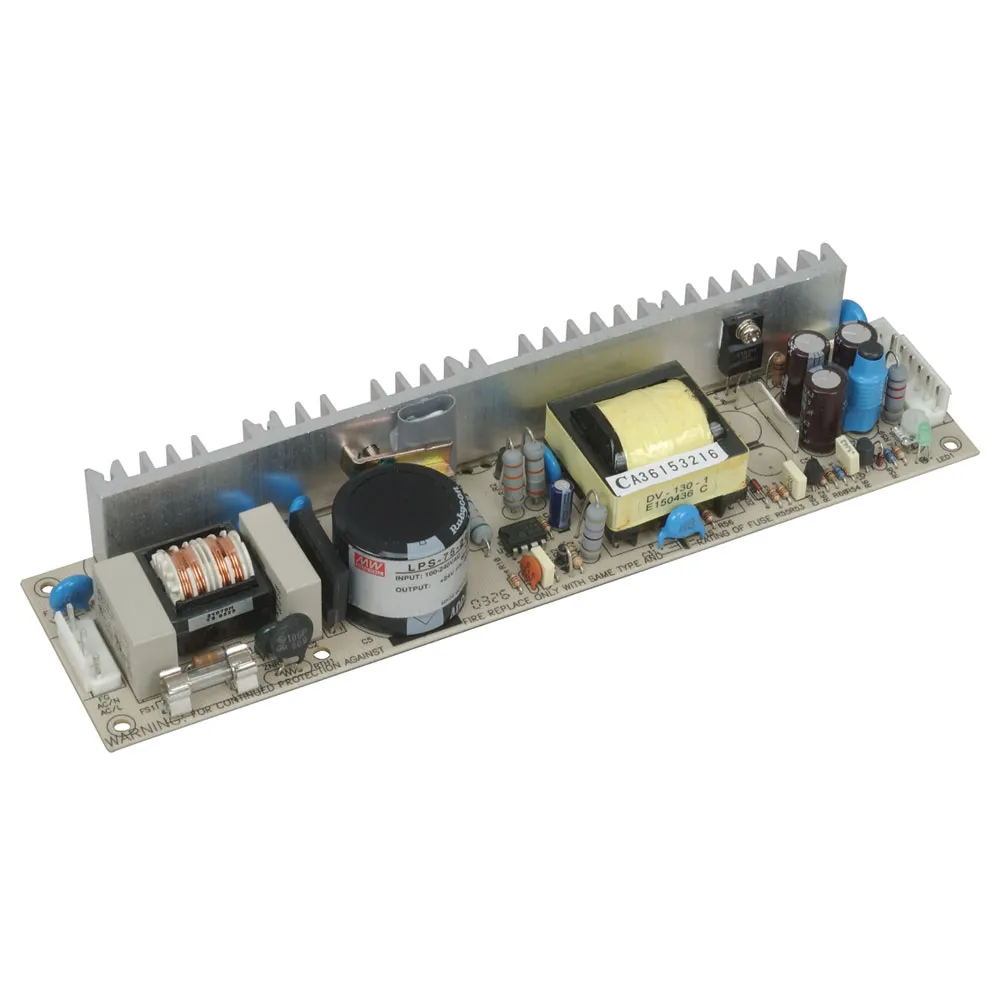

49.5W Single Output Switching Power Supply


3.3 Volts @ 15 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • PWM control and regulated
  • Small and compact size
  • Built-in remote ON-OFF control
  • LED indicator for power on
  • 100% full load burn-in test
  • 2 years warranty

Product Identification

Manufacturer Series:LPS-75

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.20 in.
Width:2.20 in.
Length:8.70 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Additional Output Voltages (VDC):3.0 to 3.5
Output Connector Type:JST B6P-VH or equiv.
Output Voltage:3.3 VDC
Output Current:16.50 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:69%
Power Rating:49.5 W
,
