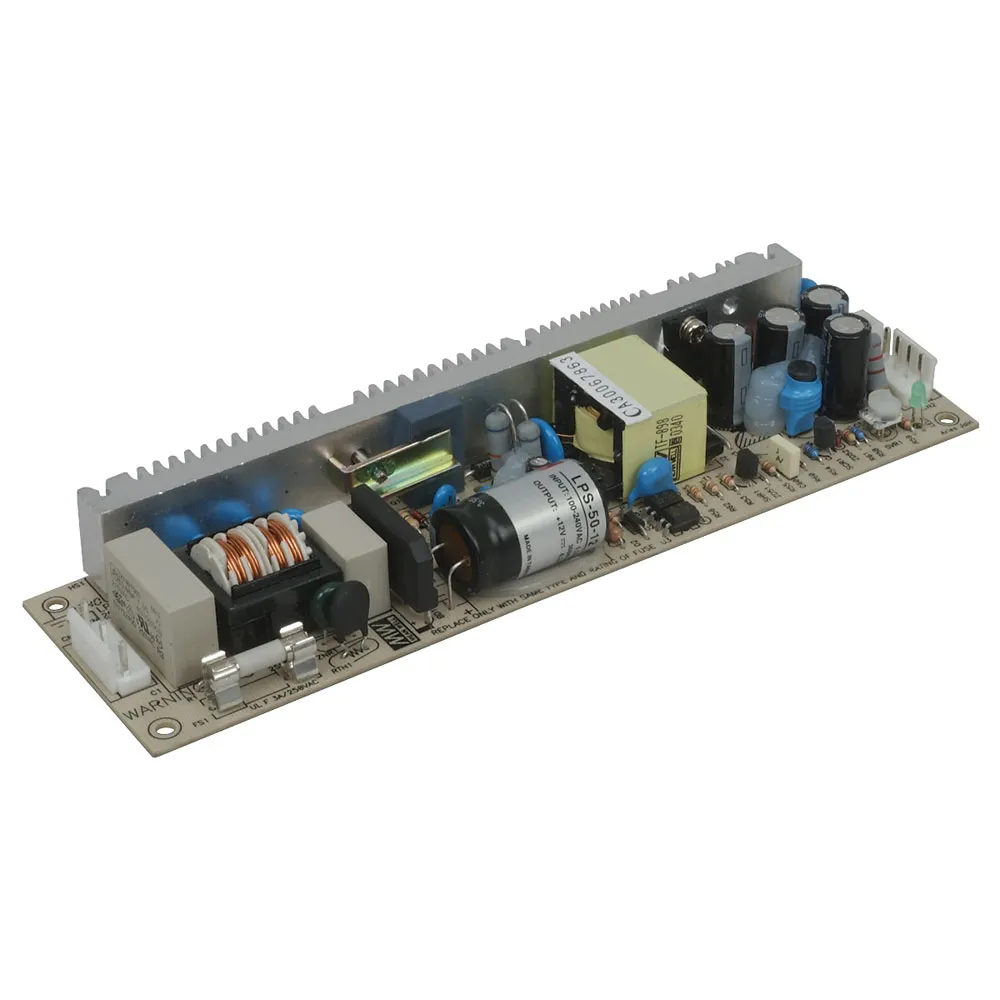

33 W Single Output Switching Power Supply
3.3 Volts @ 10 Amps
Features:
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Small and compact size
- Built-in remote ON-OFF control
- LED indicator for power on
- 100% full load burn-in test
- Low profile:23mm thickness
- 2 years warranty
Product Identification
Manufacturer Series:LPS-50
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:0.90 in.
Width:2.20 in.
Length:7.70 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.9 A
Output
Number of Outputs:1
Additional Output Voltages (VDC):3.0 to 3.6
Output Connector Type:JST B4P-VH or equiv.
Output Voltage:3.3 VDC
Output Current:12 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:33 W
