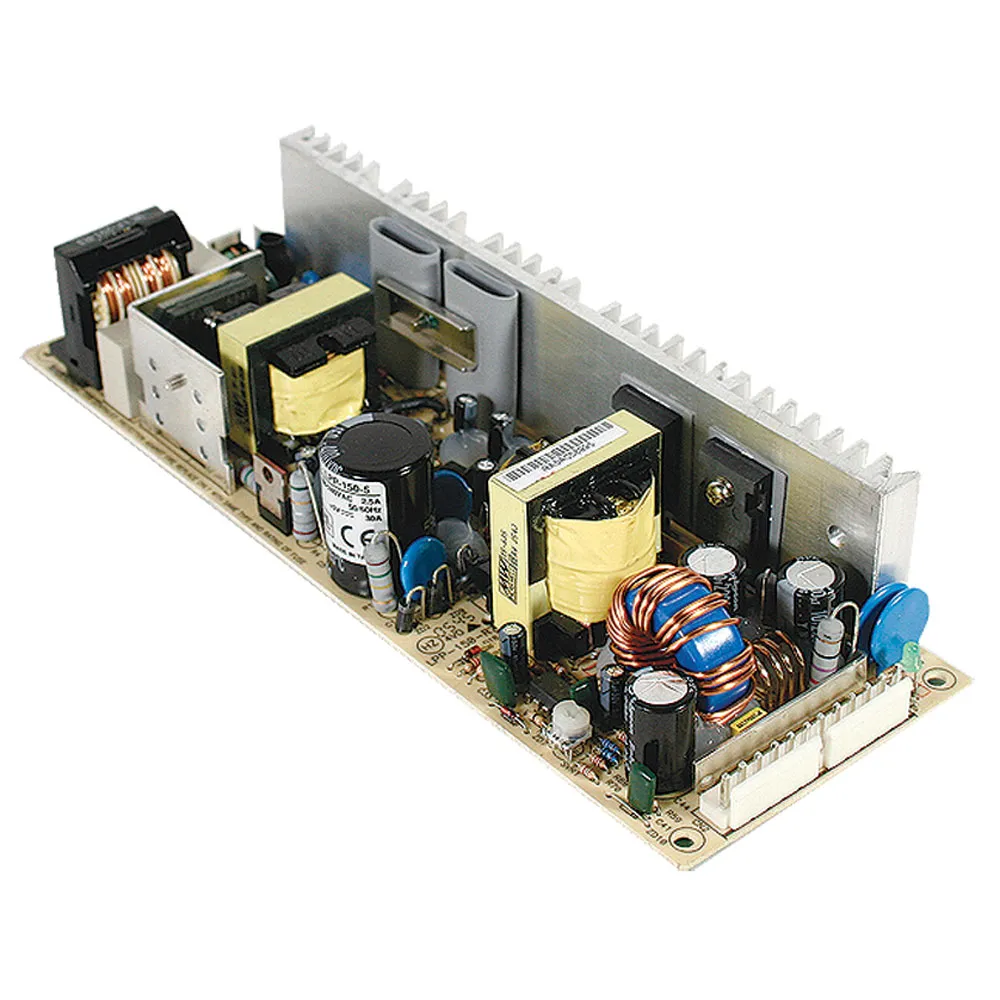

150W Open-Frame AC-to-DC Switching Power Supply

24 Volts @ 6.3 Amps

Features:

  • Input: 85-264VAC @ 47-63Hz
  • Size: 8.7"L x 2.4"W x 1.6"H
  • Mounting Holes: 8.3"L x 2.6"W x 0.2"Dia.
  • Ripple and Noise: 150mVp-p
  • Load Regulation: ±0.5%
  • Line Regulation: ±0.5%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • Built-in PFC function
  • 3-year warranty
  • Certification: UL/CUL/TUV/CE

    • Product Identification

    Manufacturer Series:LPP-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.60 in.
    Width:3 in.
    Length:8.70 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:2.5 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B6P-VH or equiv. (x2)
    Output Voltage:24 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:6.30 A

    Features

    PFC Function:Yes
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:83%
    Power Rating:150 W
    ,
