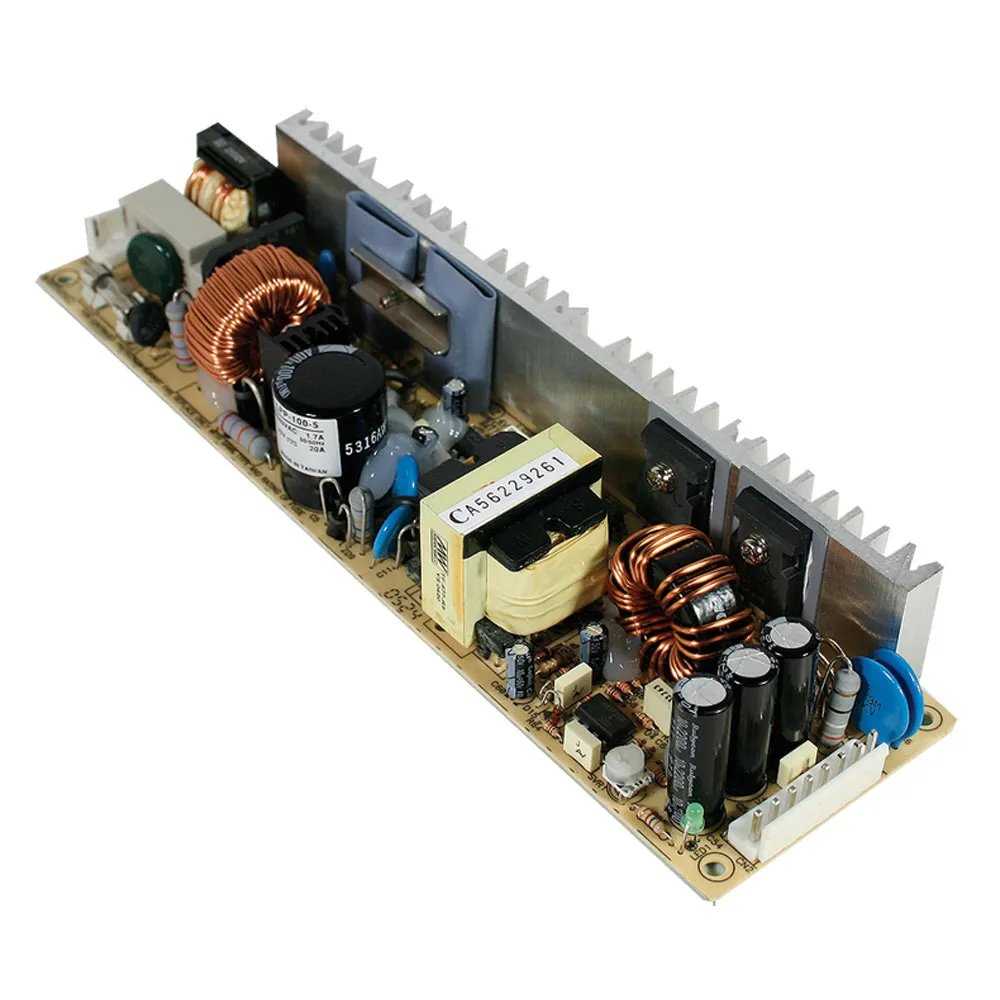

100.8W AC/DC OPEN-FRAME SWITCHING POWER SUPPLY

24 Volts @ 4.2 Amps

Specifications:

  • Size (L x W x H) (inches): 8.7 x 2.4 x 1.3
  • Ripple and Noise (mV p-p): 150
  • Load Regulation: 0.5%
  • Line Regulation: 0.5%
  • Input: 85-264VAC @ 47-63Hz, or 120-370VDC
  • Built-in active PFC function
  • Cooling by free air convection
  • 100% full load burn-in test
  • Certifications: UL/CUL/TUV/CB/CE

Product Identification

Manufacturer Series:LPP-100

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.30 in.
Width:2.40 in.
Length:8.70 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.7 A

Output

Number of Outputs:1
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.20 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:83%
Power Rating:100.8 W
,
