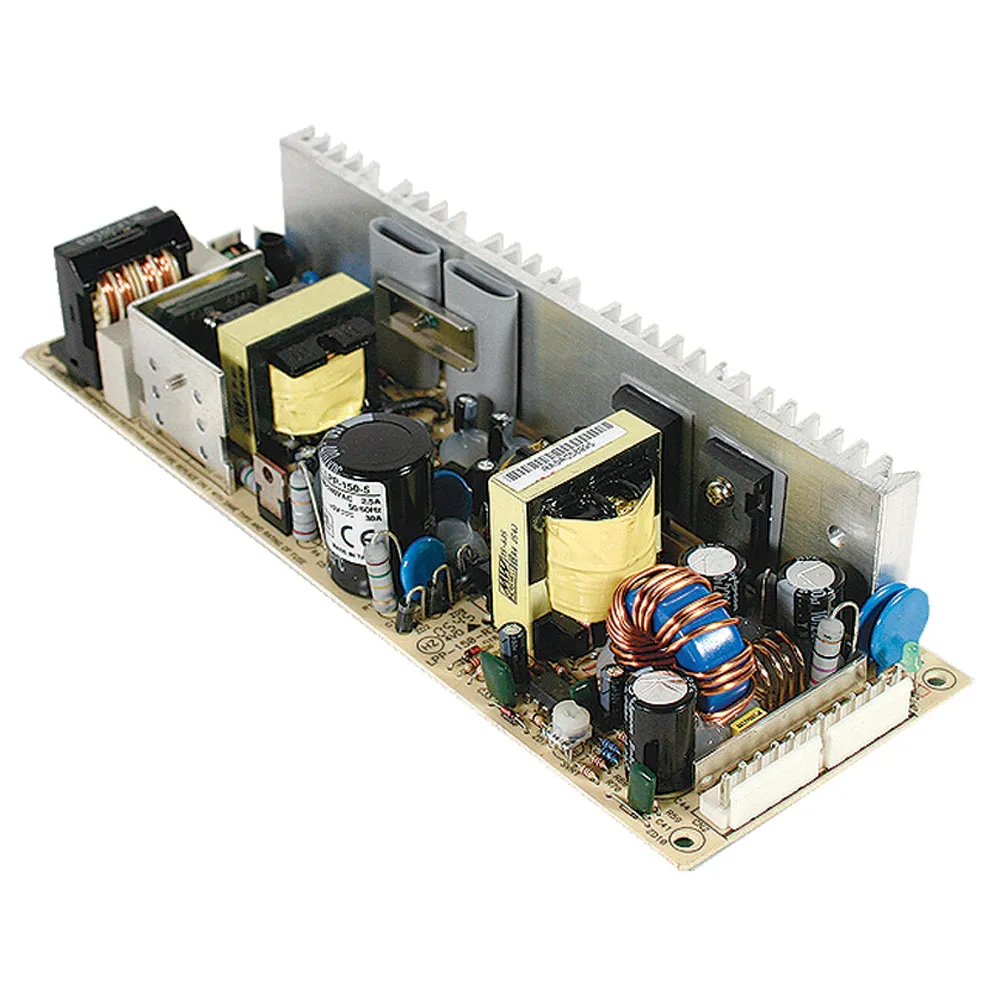

150 Watt AC/DC Power Supply
15 Volts at 10 Amps
Features
- Universal AC input/full range
- Built-in active PFC function, PF>0.96
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC: 67 kHz PWM: 134 kHz
- 3 years warranty
Product Identification
Manufacturer Series:LPP-150
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:1.60 in.
Width:3 in.
Length:8.70 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:2.5 A
Output
Number of Outputs:1
Output Connector Type:JST B6P-VH or equiv. (x2)
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:10 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:150 W
