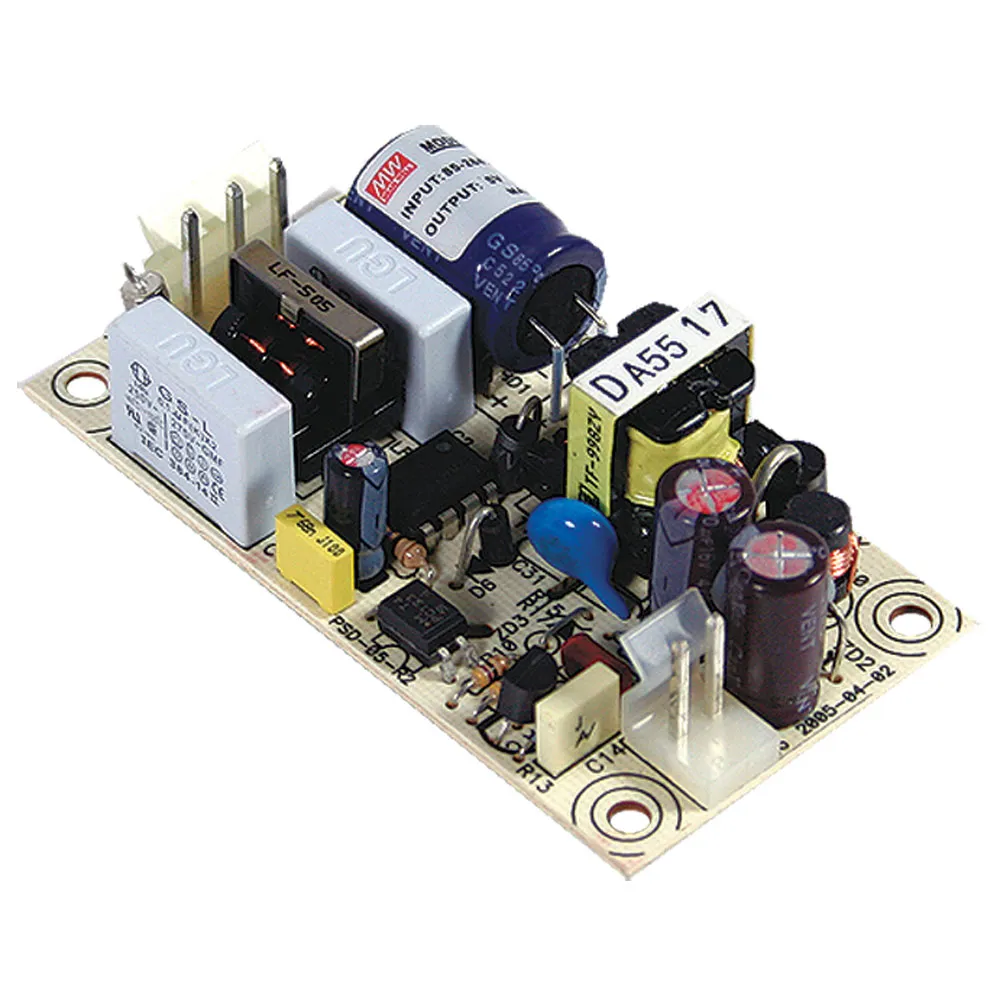

5W Single Output Switching Power Supply


Output: 15 Volts @ 0.35 Amps

Features:
  • Universal AC input / Full range
  • Low leakage current <0.5mA
  • Protections: Short circuit/Over load /Over voltage/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fix switching frequency at 67KHz
  • Low cost
  • High reliability
  • 2 years warranty

Product Identification

Manufacturer Series:PS-05

Compliance

Agency Approvals: CE, EAC, EN, CB

Dimensions & Appearance

Style:Open Frame
Height:0.80 in.
Width:1.60 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.15 A
Input Voltage:85 VAC to 264 VAC

Output

Number of Outputs:1
Output Connector Type:Molex 5273-02
Output Voltage:15 VDC
Output Current:0.40 A
Additional Output Voltages (VDC):N/A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:5.25 W
,
