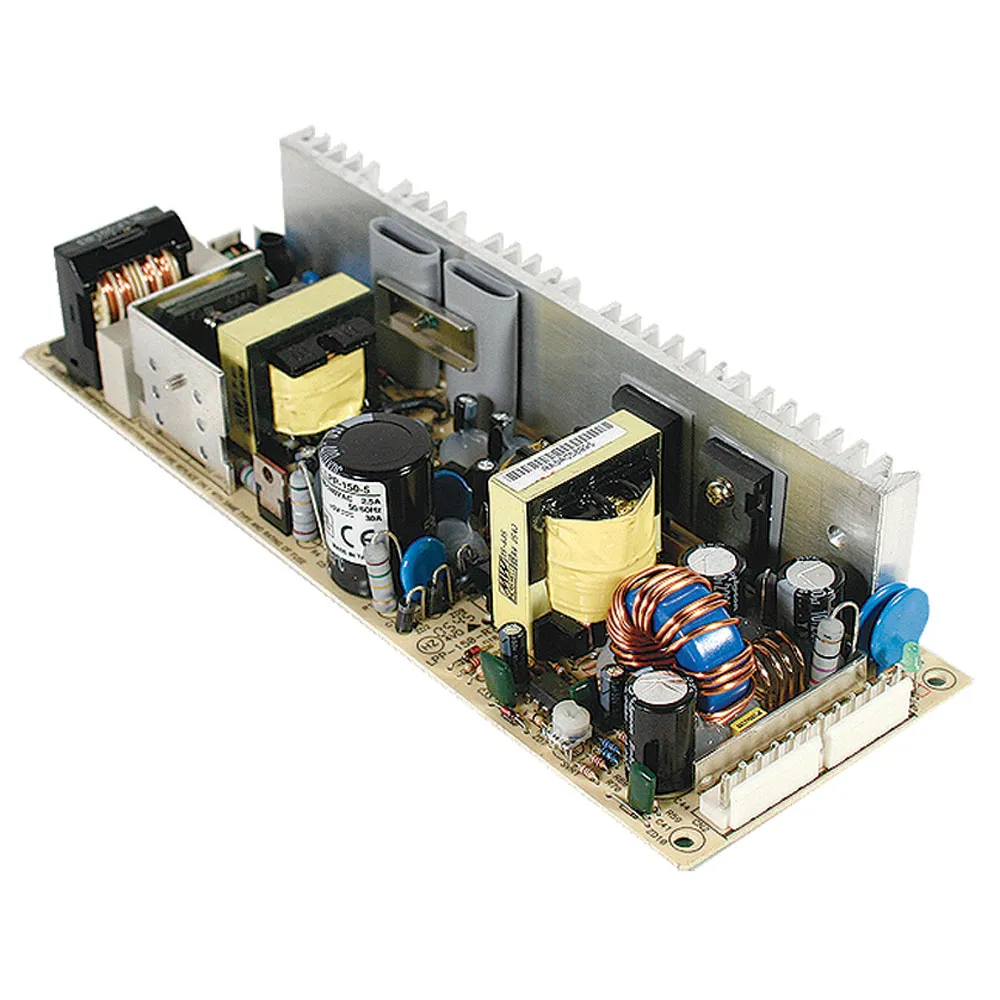

151.2W Open-Frame AC-to-DC Switching Power Supply

13.5 Volts @ 11.2 Amps

Features:

  • Input: 85-264VAC @ 47-63Hz
  • Size: 8.7"L x 2.4"W x 1.6"H
  • Mounting Holes: 8.3"L x 2.6"W x 0.2"Dia.
  • Ripple and Noise: 100mVp-p
  • Load Regulation: ±1.0%
  • Line Regulation: ± .5%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • Built-in PFC function
  • 3-year warranty
  • Certification: UL/CUL/TUV/CE

Product Identification

Manufacturer Series:LPP-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.60 in.
Width:3 in.
Length:8.70 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Connector Type:JST B6P-VH or equiv. (x2)
Output Voltage:13.5 VDC
Additional Output Voltages (VDC):N/A
Output Current:11.20 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:151.2 W
,
