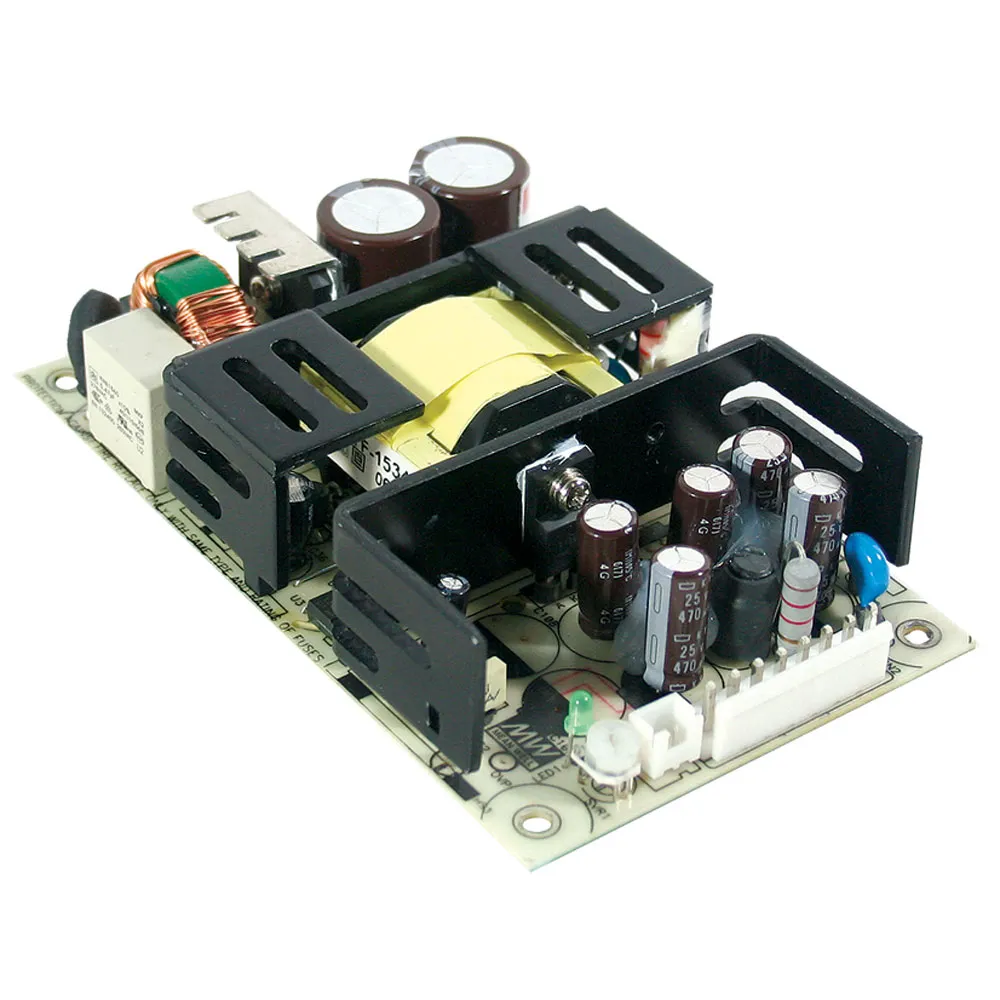

99.6W Single Output Medical Type Open Frame Power Supply
Output: 12 Volts @ 6.3 Amps
Features:
- 4"x2" miniature size
- Universal AC input/Full range
- Rated current: 6.3A
- Current range: 0 to 8.3A
- Low leakage current<200uA
- Protections: Short circuit / Overload / Over voltage
- Free air convection for rated power and 23.5CFM forced air convection for peak load
- UL60601-1/IEC60601-1/EN60601-1 medical safety approved
- No load power consumption<0.75W
- Fixed switching frequency at 65KHz
- 3 years warranty
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPS-75
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Open Frame
Height:1.2 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Connector Diameters:N/A
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:12 VDC
Additional Output Voltages (VDC):N/A
Output Current:8.30 A
Features
Minimum Isolation Voltage:4000V
Efficiency:82%
Power Rating:99.6 W
