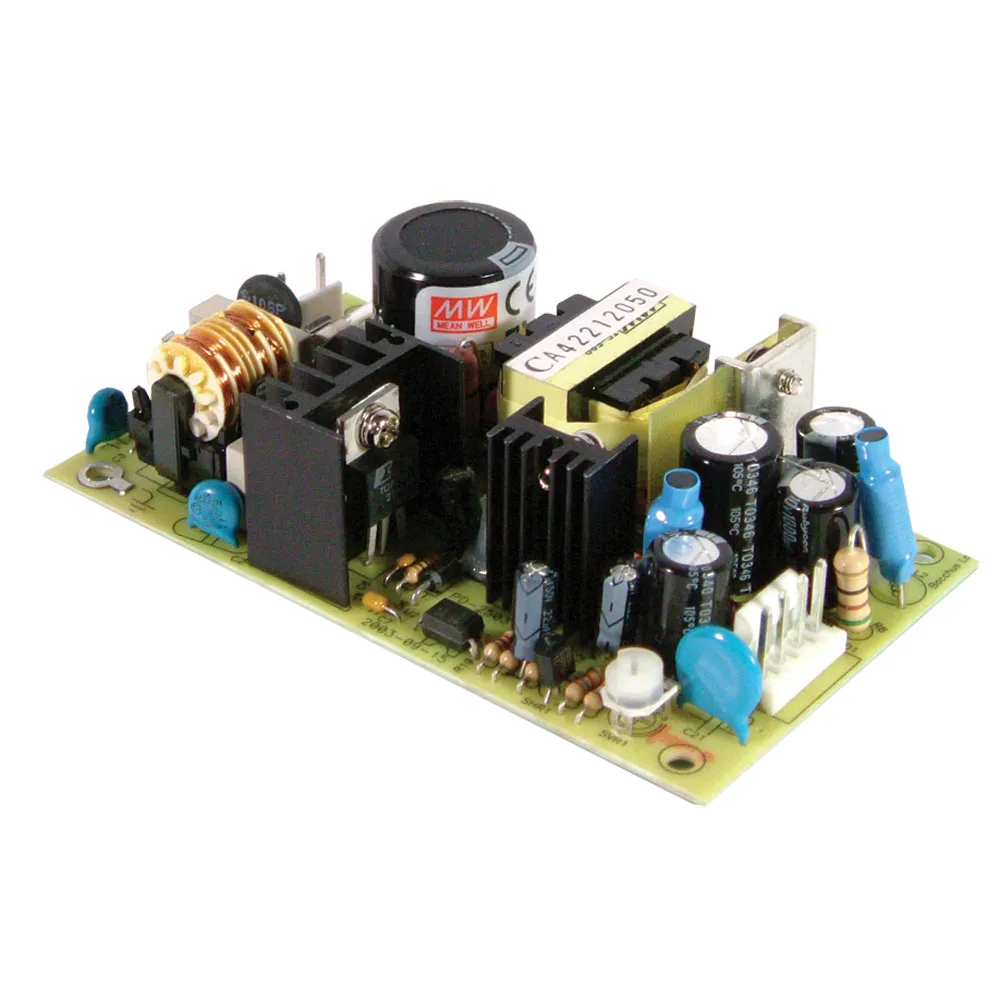

25W Open-Frame AC-to-DC Switching Dual Output Power Supply

Channel 1: 5 Volts @ 3 Amps
Channel 2: -5 Volts @ 2.5 Amps

Features:

  • Input: 85-264VAC @ 47-63Hz
  • Size: 4.2"L x 2.4"W x 1.1"H
  • Ripple and Noise: 50mVp-p
  • Load Regulation: ±4.0%
  • Line Regulation: ±1.0%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • 2-year warranty
  • Certification: UL/CUL/TUV/CE

    • Product Identification

    Manufacturer Series:PD-25

    Compliance

    Agency Approvals: CE, CUL, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.10 in.
    Width:2.40 in.
    Length:4.20 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:0.65 A

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-5
    Output Voltage:5 VDC
    Output Connector Type:Molex 41791-04
    Output Current:2.50 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:73%
    Power Rating:25 W
    ,
