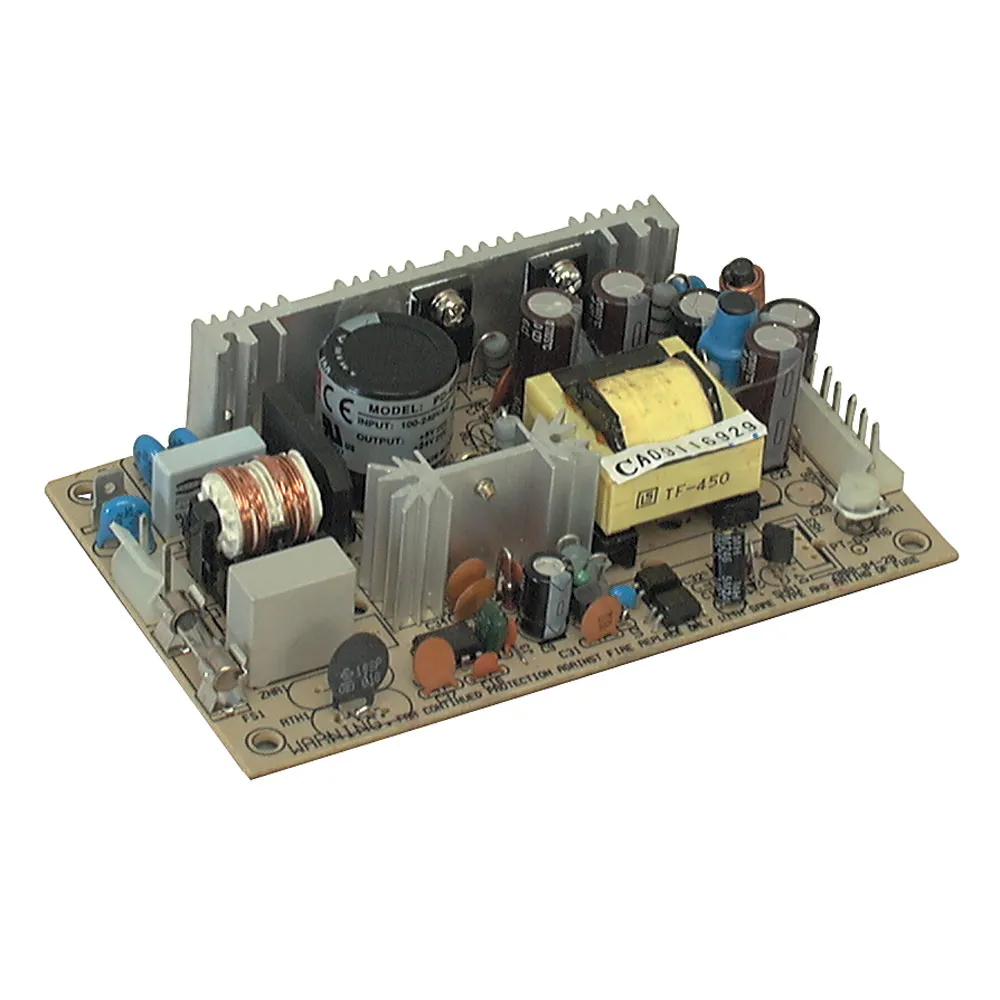

44.8W Open-Frame AC-to-DC Switching Dual Output Power Supply

Channel 1: 5 Volts @ 3.2 Amps
Channel 2: 24 Volts @ 1.2 Amps

Features:

  • Input: 90-264VAC @ 47-440Hz
  • Size: 5.0"L x 3.0"W x 1.1"H
  • Ripple and Noise: 50mVp-p
  • Load Regulation: ±3.0%
  • Line Regulation: ±1.0%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • 2-year warranty
  • Certification: UL/CUL/TUV/CE

    • Product Identification

    Manufacturer Series:PD-45

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.10 in.
    Width:3 in.
    Length:5 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 440 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1 A

    Output

    Number of Outputs:2
    Output Voltage:5 VDC
    Output Connector Type:Molex 5273-06
    Additional Output Voltages (VDC):24
    Output Current:3.20 A

    Features

    PFC Function:No
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:78%
    Power Rating:44.8 W
    ,
