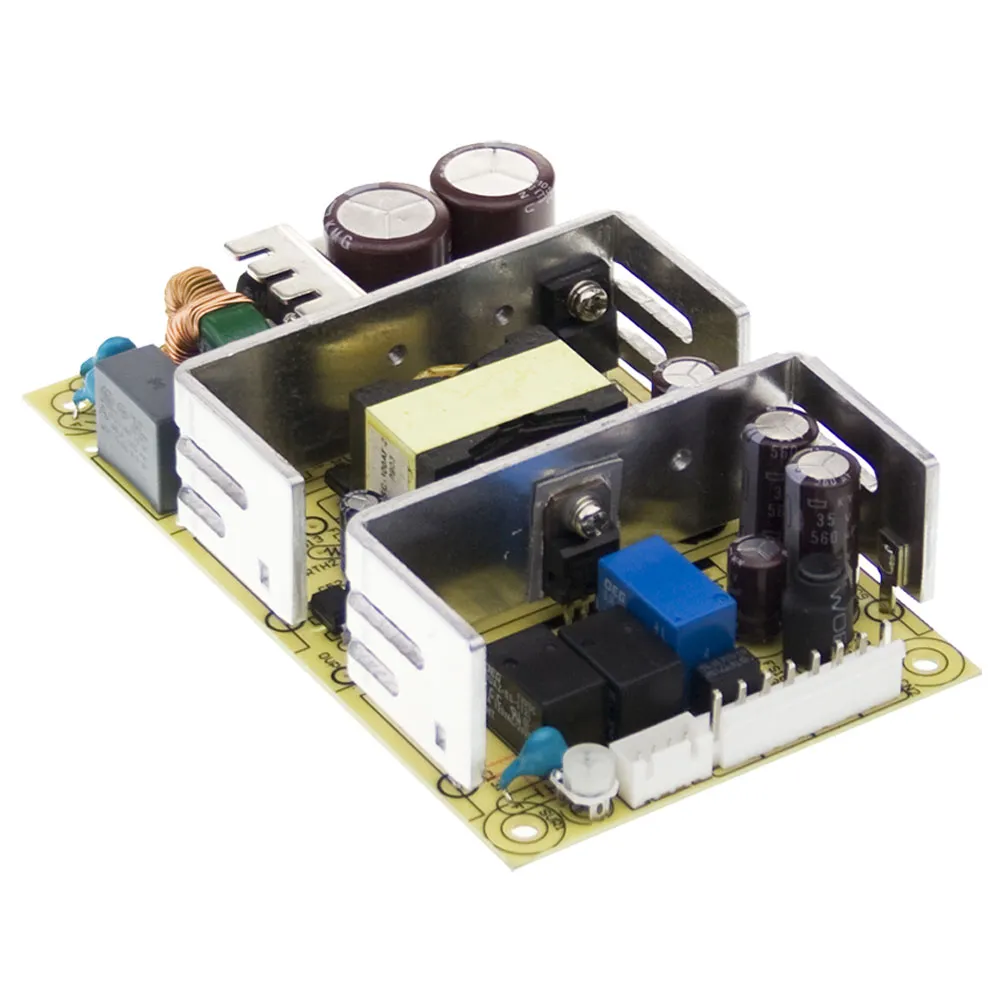

100W Single Output with Battery Charger(UPS Function)

CH1: 27.6 Volts @ 2.4 Amps
CH2: 27.6 Volts @ 1.25 Amps

Find out more about MEAN WELL Security Power Solutions.

Features:

  • Universal AC input / Full range
  • 5"x3" compact size
  • Protections: Short circuit / Overload / Over voltage
  • Battery low protection / Battery polarity protection by fuse
  • Relay contact signal output for AC OK and Battery Low
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty

Product Identification

Manufacturer Series:PSC-100

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.20 in.
Width:3 in.
Length:5 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2 A

Output

Number of Outputs:2
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:27.6 VDC
Additional Output Voltages (VDC):27.6
Output Current:3.50 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:86%
Power Rating:100.74 W
,
