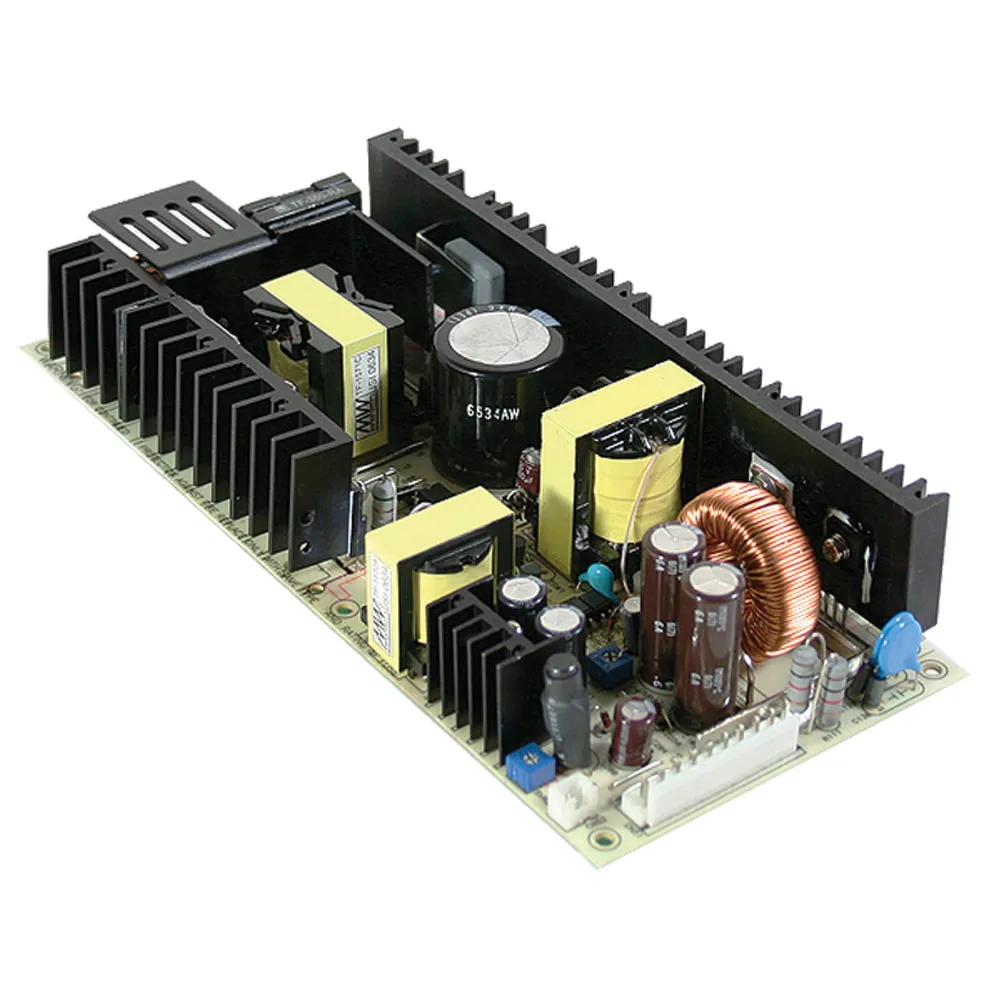

250W Isolated Dual Output with PFC Function


CH1: 12 Volts @ 15 Amps
CH2: 5 Volts @ 5 Amps

Features:
  • Universal AC input / Full range
  • Isolated output & GND for CH1,CH2
  • Built-in active PFC function, PF>0.92
  • Protections:Short circuit / Overload / Over voltage / Over temperature
  • Remote control for CH1
  • Peak load 170% for CH1 within 10 sec.
  • Cooling by free air convection
  • 100% full load burn-in test
  • 3 years warranty

Product Identification

Manufacturer Series:PID-250

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.60 in.
Width:3.70 in.
Length:8.70 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):5
Output Connector Type:JST B10P-VH or equiv.
Output Voltage:12 VDC
Output Current:15 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:83%
Power Rating:205 W
,
