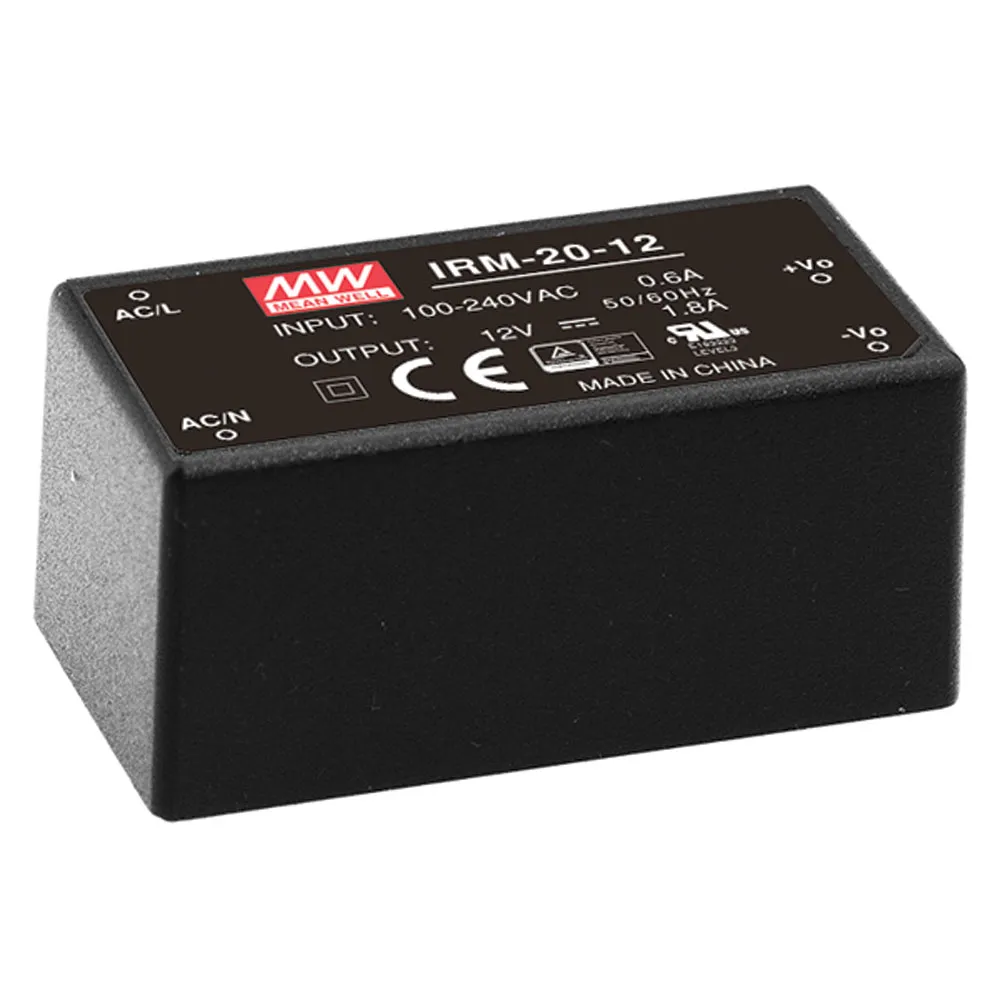

AC to DC Power Supply Encapsulated Single Output 12 Volts 1.8 Amps 21.6 Watts

12 Volts @ 1.8 Amps

Specifications

  • Output Power (W): 21.6
  • Size (L x W x H) inches: 1.8 X 1 X 0.85
  • Ripple & Noise (mV p-p): 200
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.3%
  • Efficiency: 84%
  • Agency Approvals: UL/CUL/CB/CE/TUV
  • Universal AC input / Full range
  • Compact size
  • Cooling by free air convection
  • Protections: short circuit, overload, over voltage
  • Class II isolation
  • No load power consumption <0.1W
  • 100% full load burn in test
  • High reliability
  • 3 year warranty

Product Identification

Product Type:Power Module SMPS
Manufacturer Series:IRM-20

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:0.94 in.
Width:1.07 in.
Length:2.06 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 440 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Output Current:1.80 A

Features

Minimum Isolation Voltage:3000V
Efficiency:84%
Power Rating:21.6 W
,
