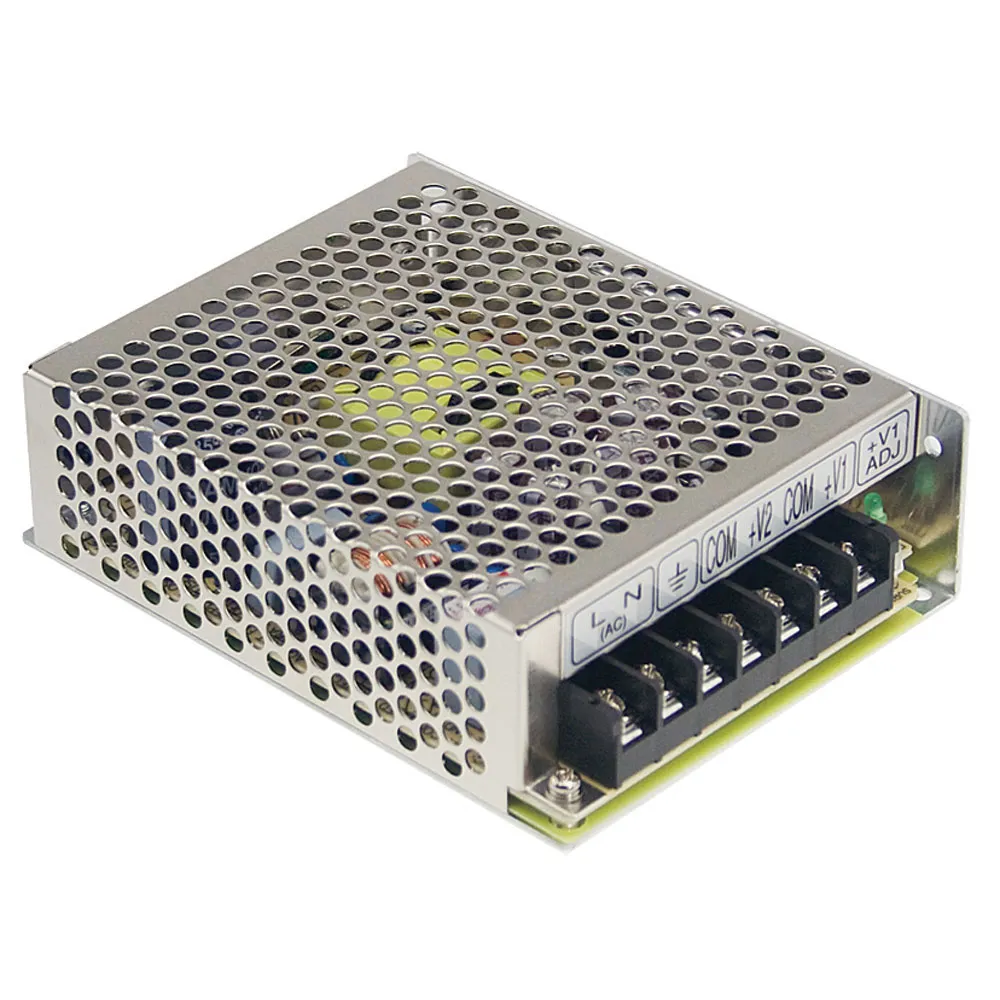

53.6W AC/DC ENCLOSED SWITCHING POWER SUPPLY

5Volts @ 6Amps (Channel 1)
24Volts @ 2Amps (Channel 2)

Specifications:

  • Size (L x W x H) (inches): 3.9 x 3.8 x 1.4
  • Ripple and Noise (mV p-p): 80
  • Load Regulation: 0.5%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • 5G Vibration
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit/overload/overvoltage protection
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-50

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.4 in.
Width:3.8 in.
Length:3.9 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.3 A

Output

Number of Outputs:2
Output Current (Channel 2):1.4 A
Output Voltage (Channel 1):5 VDC
Output Voltage (Channel 2):24 VDC
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):24
Output Current (Channel 1):4 A
Output Current:4 A

Features

Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:53.6 W
,
