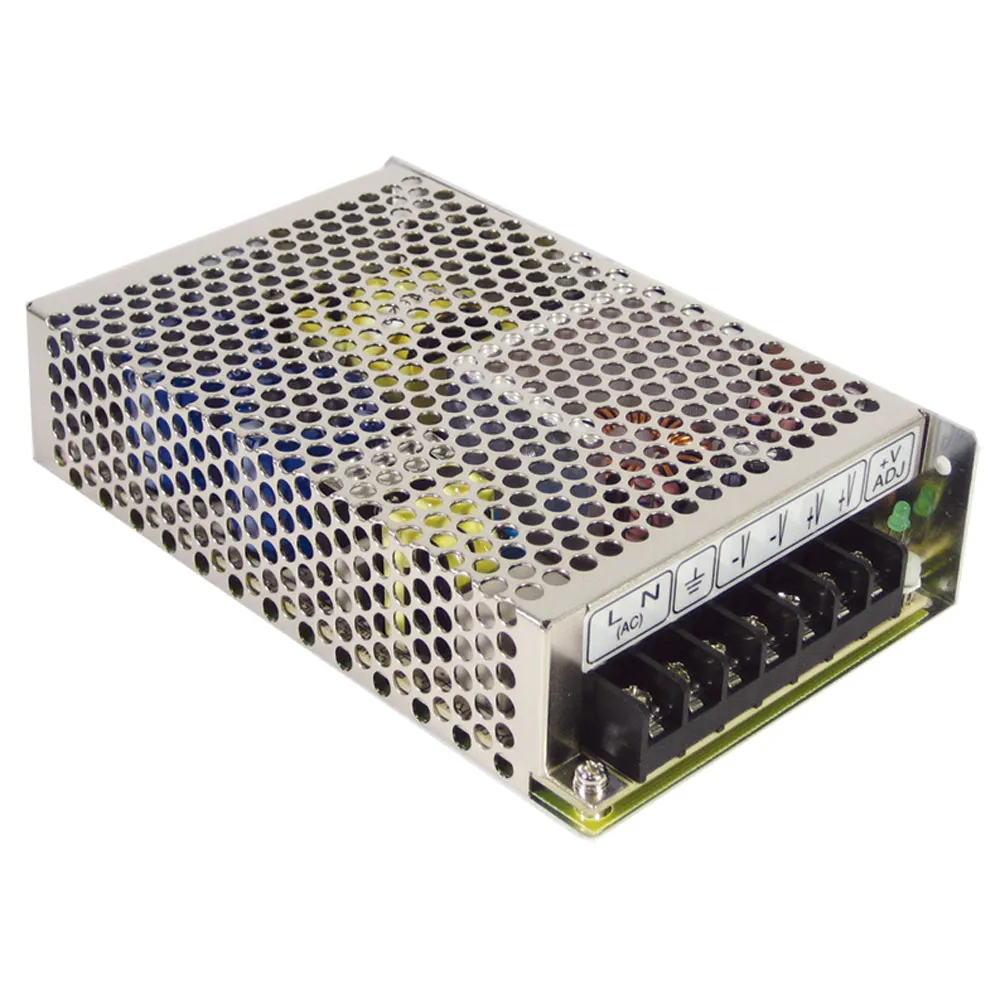

85W Dual Output Switching Power Supply
CH1: 5 Volts @ 8 Amps
CH2: 24 Volts @ 2 Amps
Features:- Universal AC input / Full range
- Protections:Short circuit/Over load/Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105°C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70°C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
CH1: 5 Volts @ 8 Amps
CH2: 24 Volts @ 2 Amps
Features:
- Universal AC input / Full range
- Protections:Short circuit/Over load/Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105°C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70°C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-85
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.8 in.
Length:6.3 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A
Output
Number of Outputs:2
Output Voltage (Channel 1):5 VDC
Output Current (Channel 2):2 A
Output Voltage (Channel 2):24 VDC
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):24
Output Current (Channel 1):8 A
Output Current:8 A
Features
Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:88 W
