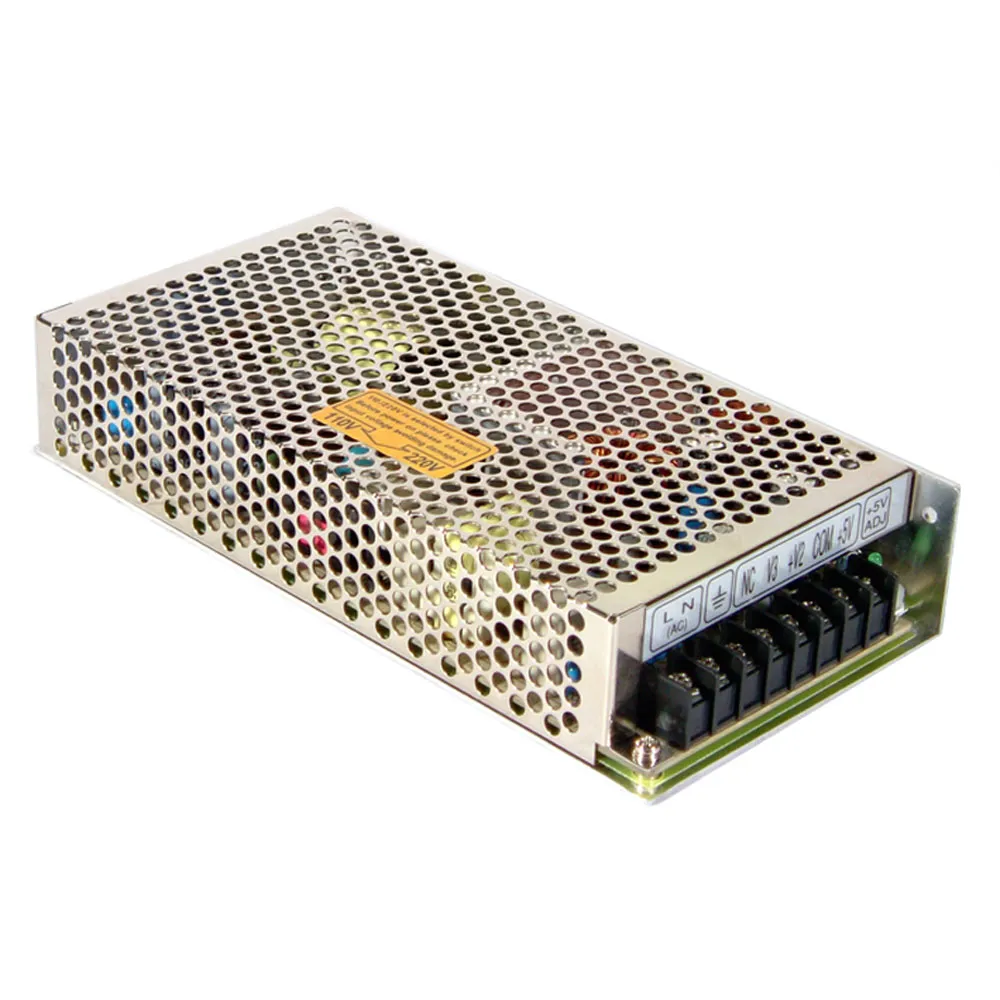

125W Dual Output Switching Power Supply

CH1: 24 Volts @ 3.7 Amps
CH2: 12 Volts @ 3.7 Amps

Features:
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life, and high reliability
  • 3 years warranty

Product Identification

Type:Switch Selectable SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-125

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:2
Output Voltage (Channel 2):12 VDC
Output Current (Channel 2):3.7 A
Output Voltage (Channel 1):24 VDC
Additional Output Voltages (VDC):12
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):3.7 A
Output Current:3.70 A

Features

Minimum Isolation Voltage:3000V
Efficiency:85%
Power Rating:133.2 W
,
