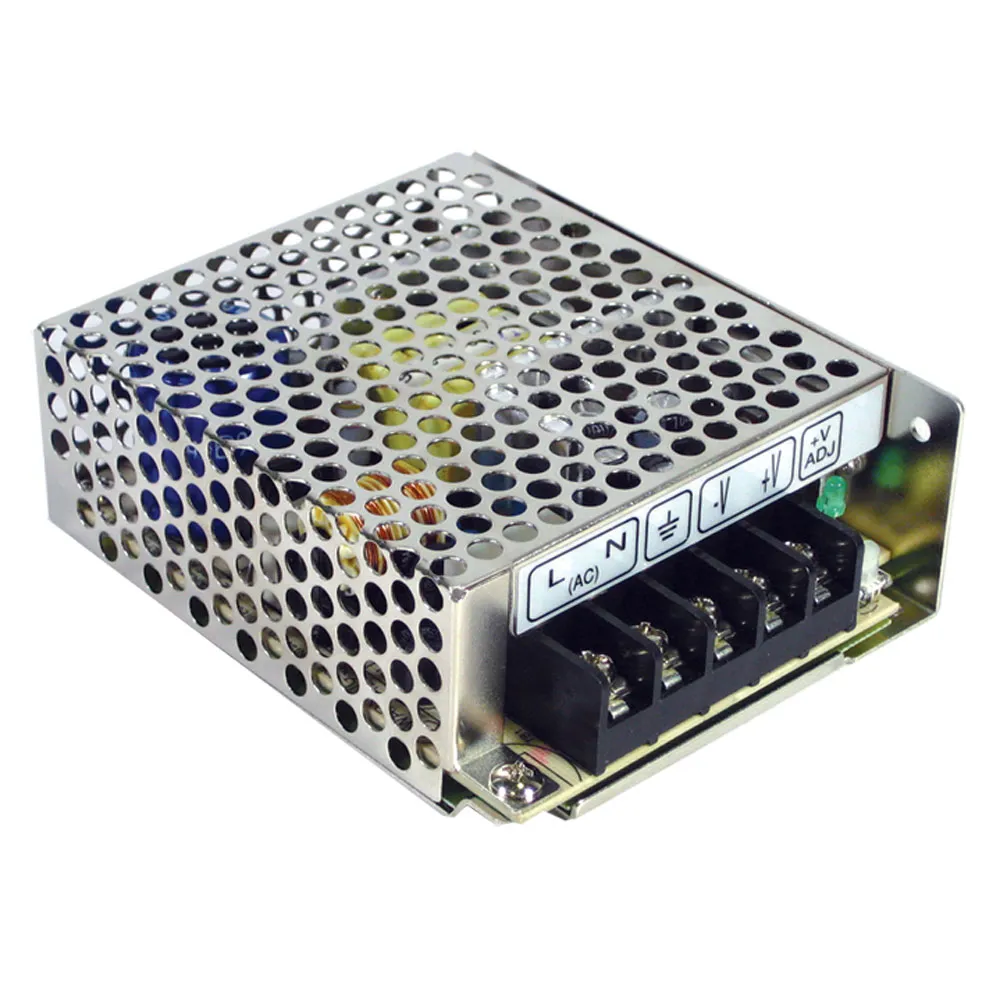

35 Watt Dual Output Switching Power Supply

CH1: 13.5 Volts @ 1.3 Amps
CH2: -13.5 Volts @ 1.3 Amps

Features:

  • Universal AC input / Full range
  • Protections:Short circuit/Over load/Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RD-35

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.4 in.
Width:3.2 in.
Length:3.9 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:0.8 A

Output

Number of Outputs:2
Output Voltage (Channel 2):-13.5 VDC
Output Current (Channel 2):1.3 A
Output Voltage (Channel 1):13.5 VDC
Output Current (Channel 1):1.3 A
Additional Output Voltages (VDC):-13.5
Output Voltage:13.5 VDC
Output Connector Type:Screw Terminal Block
Output Current:2 A

Features

Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:35.1 W
,
