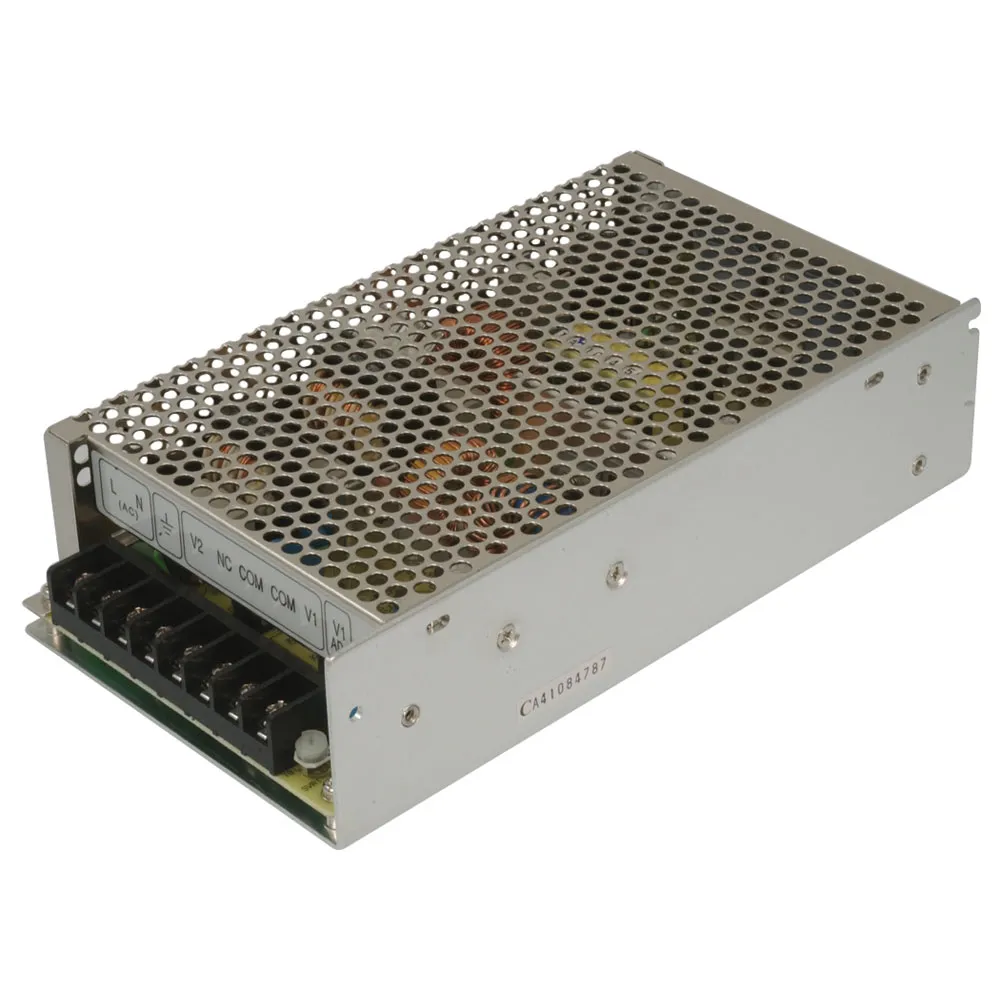

155W Single Output with 5V, 3A DC-DC Converter


CH1: 12 Volts @ 11.5 Amps
CH2: 5 Volts @ 3 Amps

Features:
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: Short circuit / Overload / Over voltage
  • Battery low and battery polarity protection
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC 67KHz, PWM 134KHz
  • 2 years warranty

Product Identification

Type:Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:ADS-155

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:4.3 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:2
Output Voltage (Channel 2):5 VDC
Output Current (Channel 2):3 A
Output Voltage (Channel 1):12 VDC
Additional Output Voltages (VDC):5
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):11.5 A
Output Current:12.50 A

Features

Minimum Isolation Voltage:3000V
Efficiency:77%
Power Rating:153 W
,
