AC to DC LED Power Supply 15 Volts 36 Amps 540 Watts

15 Volts @ 36 Amps

Features

  • "A" model - Vo and Io level can be adjusted through internal potentiometer
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • No load power consumption <0.5W at remote OFF
  • High efficiency up to 92+%
  • -40°C to +70°C wide operating range
  • Protections: Short circuit / Over voltage / Over temperature
  • Fanless design, cooling by free air convection
  • IP65 design for indoor or outdoor installations
  • Withstand 5G vibration test
  • LED indicator for power on
  • Type HL LED Driver for use in Class I, Division 2 hazardous(Classified) location luminaires
  • Suitable for dry / damp / wet location
  • 7 years warranty

    Applications

    LED street lighting
  • LED fishing lamp
  • LED high-bay lighting
  • LED searchlight
  • LED greenhouse lighting
  • Parking space lighting
  • Class I, Division 2 hazardous (Classified) location luminaires

      • Overview

Product Identification

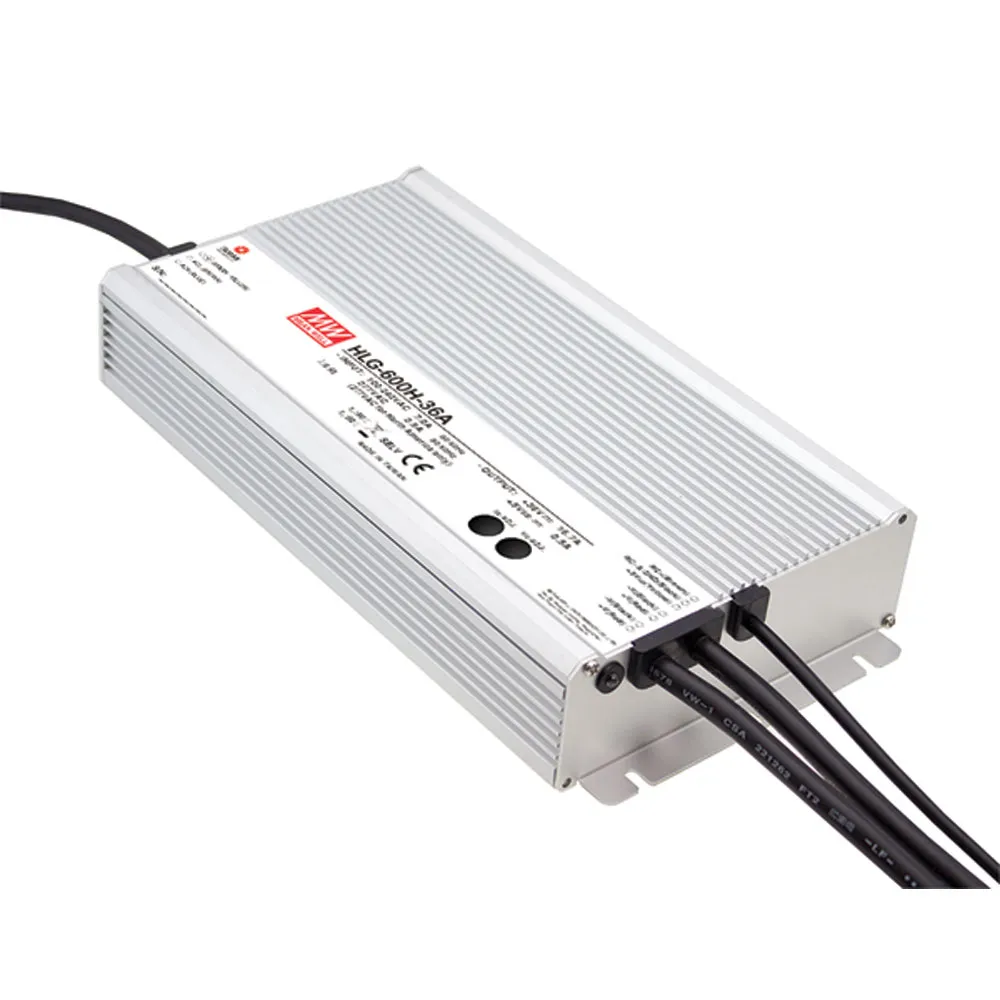

Manufacturer Series:HLG-600H
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.91 in.
Length:11.02 in.
Width:5.67 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:7 A

Output

Number of Outputs:1
Output Voltage:15 VDC
Output Connector Type:Stripped and Tinned
Output Range:N/A
Output Current:36 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93.5%
Power Rating:540 W
,
