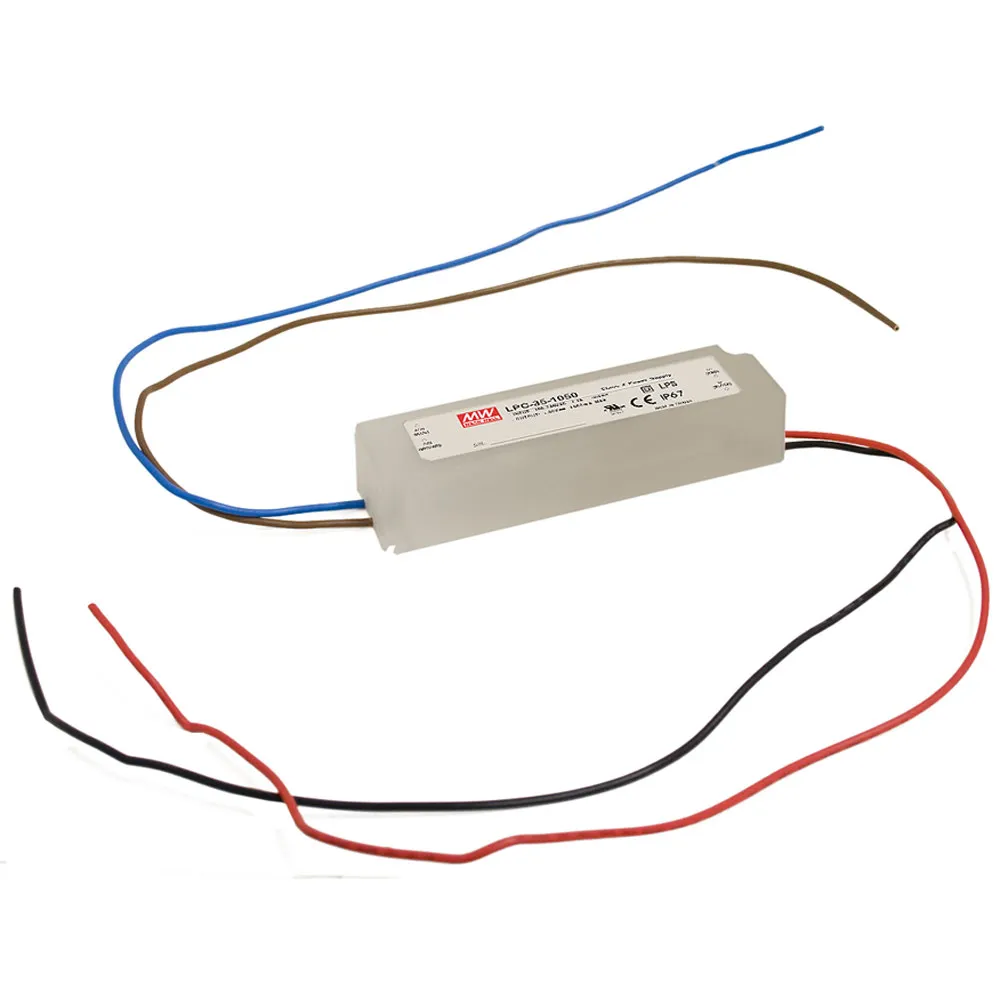

35W Single Output Switching LED Power Supply
9 ~ 30 Volts @ 1050 Milliamps
Features:
- Constant current design
- Universal AC input / Full range
- Fully encapsulated with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Over current / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- UL1310 Class 2 power unit, pass LPS
- 100% full load burn-in test
- Low cost, high reliability
- Suitable for LED lighting and moving sign applications
- 2 years warranty
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:LPC-35
Compliance
Agency Approvals: CE, CUL, EAC, EN, UL, UL, CUL, CE, EN, EAC
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.18 in.
Width:1.57 in.
Length:5.82 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:75°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.1 A
Output
Number of Outputs:1
Output Range:9 VDC to 30 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Current:1.05 A
Features
PFC Function:No
Minimum Isolation Voltage:3000V
IP Rating:IP67
Efficiency:85%
Power Rating:31.5 W
