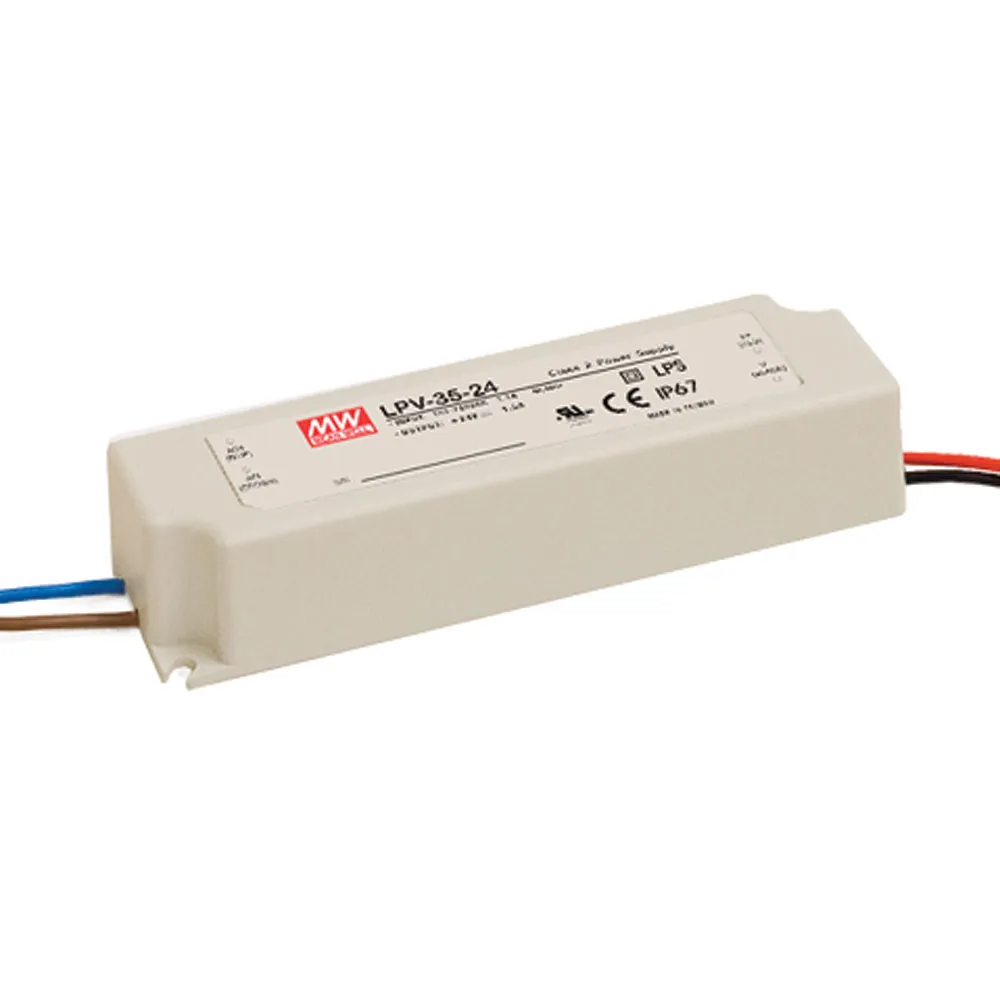

36W Single Output Switching LED Power Supply
36 Volts @ 1 AmpsFeatures:
- Constant voltage design
- Universal AC input / Full range
- Fully encapsulated with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- UL1310 Class 2 power unit, pass LPS
- 100% full load burn-in test
- Low cost, high reliability
- Fully isolated plastic case
- Suitable for LED lighting and moving sign applications
- 2 years warranty
Overview
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:LPV-35
Compliance
Agency Approvals: CE, CUL, EAC, EN, UL
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.18 in.
Width:1.57 in.
Length:5.82 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:75°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.1 A
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:36 VDC
Output Current:1 A
Output Range:N/A
Features
PFC Function:No
Minimum Isolation Voltage:3000V
IP Rating:IP67
Efficiency:85%
Power Rating:36 W
