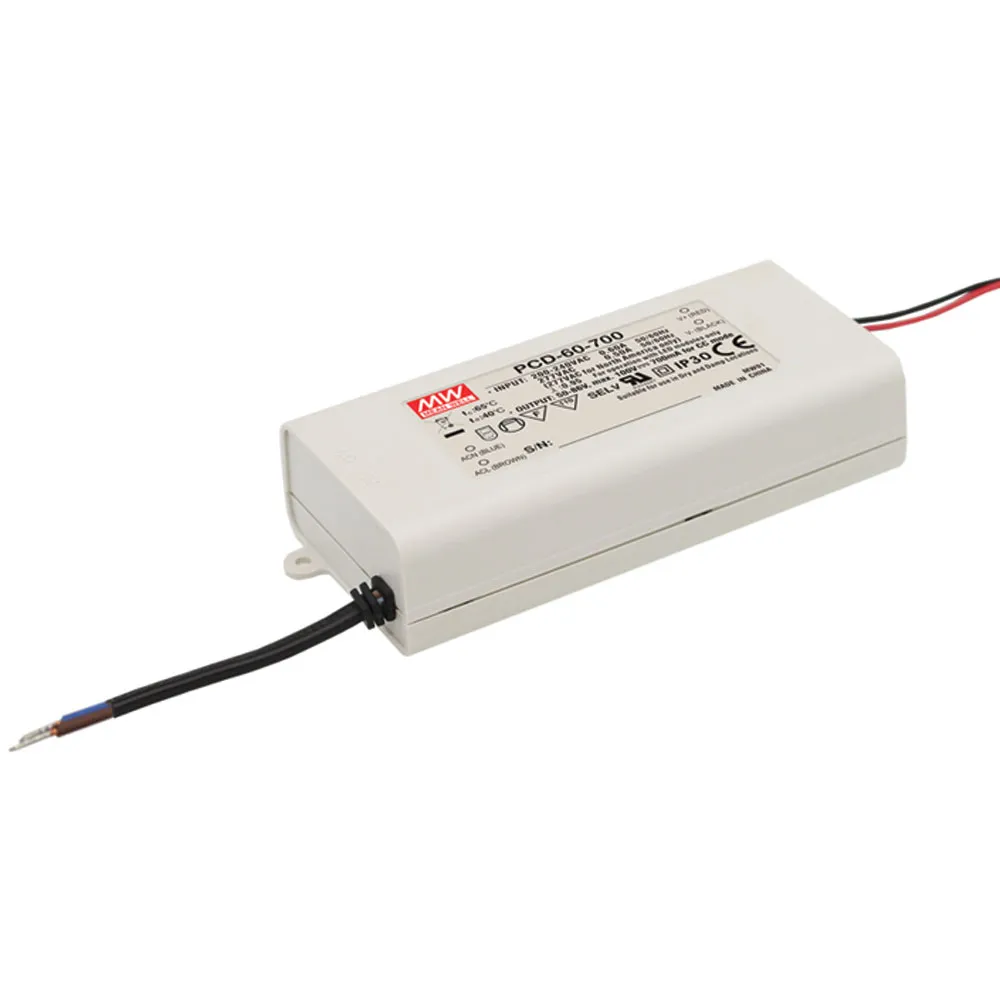

60W Single Output Switching AC Dimmable LED Power Supply with Phase Dimmer

4 - 57 Volts @ 1.05 Amps (mA)

Features

  • AC Input Range: 180 - 295 VAC
  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Overload / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP30 Design
  • Class II power unit, no FG
  • FCC Certified
  • Suitable for indoor LED lighting applications
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:PCD-60

Compliance

Agency Approvals: CE, EAC, EN, ENEC, CB, CB, CE, EN, ENEC, EAC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.24 in.
Width:2.36 in.
Length:5.04 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 295 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Range:34 VDC to 57 VDC
Output Current:1.05 A

Features

PFC Function:Yes
IP Rating:IP42
Minimum Isolation Voltage:3750V
Efficiency:86%
Power Rating:59.9 W
,
