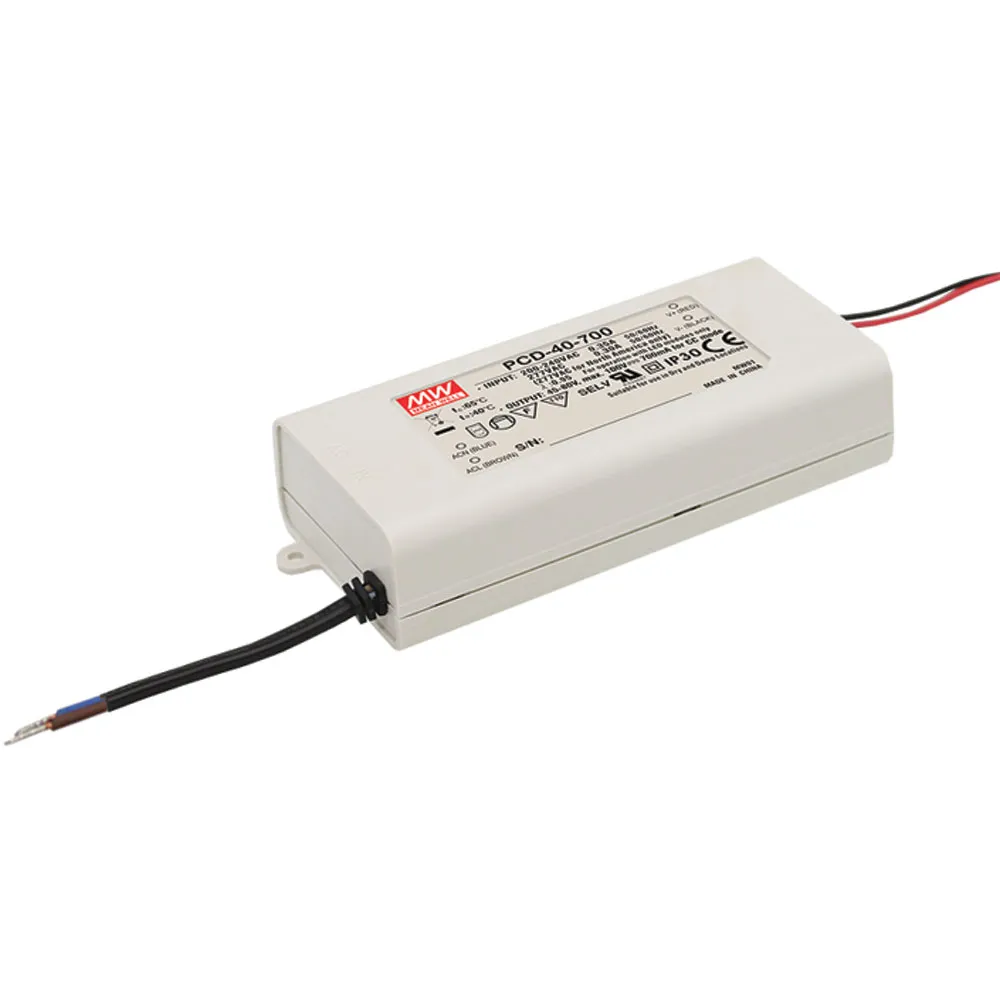

40W Single Output Switching AC Dimmable LED Power Supply with Phase Dimmer
34 - 57 Volts @ 0.7 Amps (mA)Features
- AC Input Range: 180 - 295 VAC
- AC phase-cut dimming
- Work with leading edge and trailing edge TRIAC dimmers
- Built-in active PFC function
- Constant current design
- Protections: Short circuit / Overload / Over temperature
- Cooling by free air convection
- Fully isolated plastic case
- IP30 Design
- Class II power unit, no FG
- FCC Certified
- Suitable for indoor LED lighting applications
- 100% full load burn-in test
- Low cost
- High reliability
- 3 years warranty
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:PCD-40
Compliance
Agency Approvals: CE, EAC, EN, ENEC, CB, CB, CE, EN, ENEC, EAC
Dimensions & Appearance
Style:Enclosed
Color:White
Height:1.24 in.
Width:2.36 in.
Length:5.04 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:50°C
Input
Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.35 A
Input Voltage:180 VAC to 295 VAC
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:34 VDC to 57 VDC
Features
PFC Function:Yes
IP Rating:IP42
Minimum Isolation Voltage:3750V
Efficiency:86%
Power Rating:39.9 W
