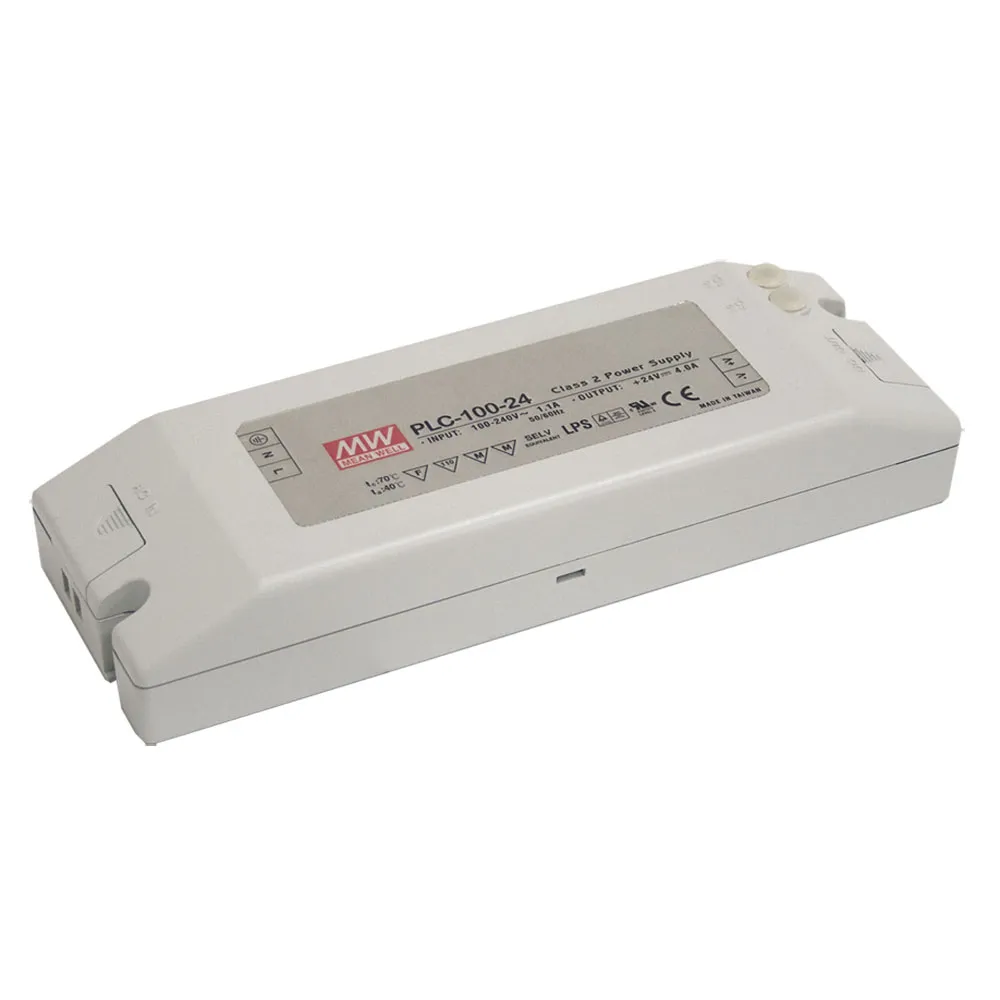

100W Single Output Switching LED Power Supply


24 Volts @ 4 Amps

Features:
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in active PFC function
  • UL1310 Class 2 power unit
  • Pass LPS
  • Cooling by free air convection
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty
  • High efficiency 90%

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:PLC-100

Compliance

Agency Approvals: CB, CCC, CE, EAC, EN, TUV, CUL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.37 in.
Width:2.73 in.
Length:7.89 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.1 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Range:20.4 VDC to 24 VDC
Output Voltage:24 VDC
Output Current:4 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:N/A
Efficiency:90%
Power Rating:96 W
,
