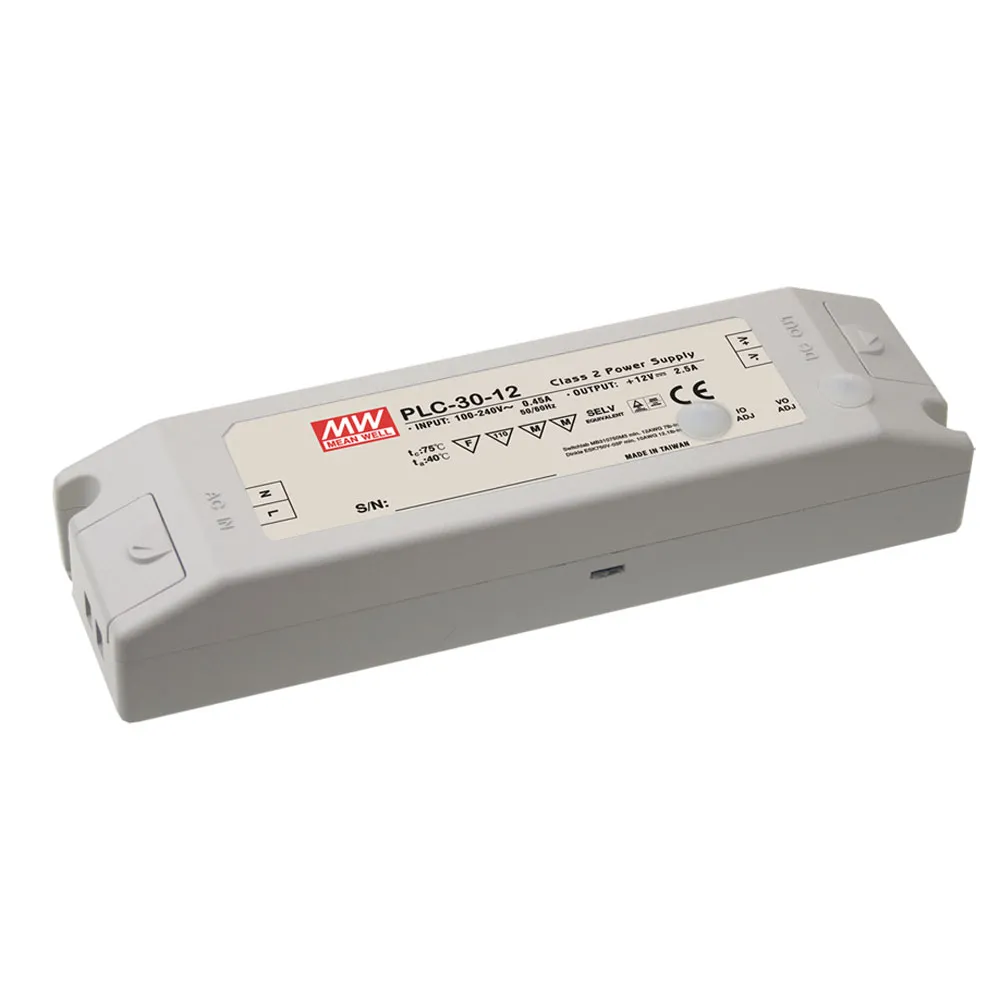

30W Single Output LED Power Supply


12 Volts @ 2.5 Amps

Features:
  • Universal AC input / Full range
  • Fully isolated plastic case with terminal block style of I/O
  • Built-in constant current limiting circuit
  • Adjustable output voltage and current level
  • Protections:Short circuit/Over load/Over voltage/Over temperature
  • Built-in active PFC function, comply with EN61000-3-2 class C (Pin ≤25W)
  • Cooling by free air convection
  • 100% full load burn-in test
  • High reliability
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • 2 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:PLC-30

Compliance

Agency Approvals: CB, CCC, CE, EAC, EN, TUV, CUL, CUL, TUV, CB, CE, EN, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.18 in.
Width:1.81 in.
Length:6.29 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.4 A

Output

Number of Outputs:1
Output Range:11.4 VDC to 13.2 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current:2.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:N/A
Efficiency:82.5%
Power Rating:30 W
,
