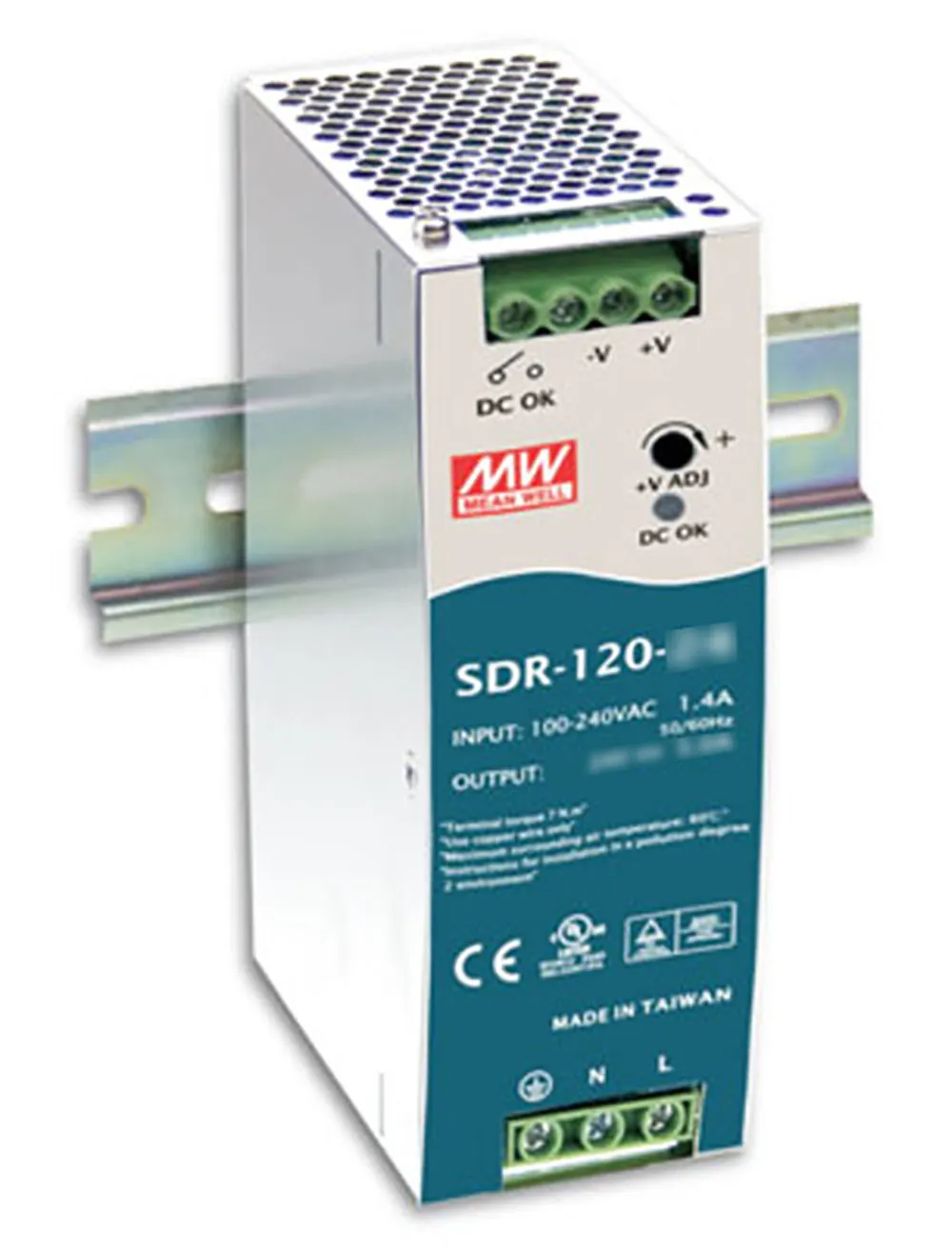

120-Watt Single Output DIN Rail Power Supply with PFC Function

SDR-120-12: 12 Volts @ 10 Amps

Features:

  • 91% high efficiency and low power dissipation
  • Full input range switcher
  • Built-in active PFC function compliance
  • 150% peak power load ability for 3 seconds
  • Universal AC input 90~264V
  • Protection: Short circuit, Overload, Over-voltage, Over-temperature
  • Cooling by free air convection
  • Built-in DC OK relay contact
  • On panel LED indicator
  • 100% fully loaded burn-in testing
  • Can be installed on DIN Rail TE-35, 15, or 7.5
  • Certificates: UL508 / CUL / TUV / CE / CB / GL / SEMI F47
  • 3 year warranty

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:SDR-120

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, SEMI, TUV, UL

Dimensions & Appearance

Depth:1.57 in.
Color:Silver
Height:4.47 in.
Width:4.93 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.4 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:10 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Efficiency:89%
Power Rating:120 W
,
