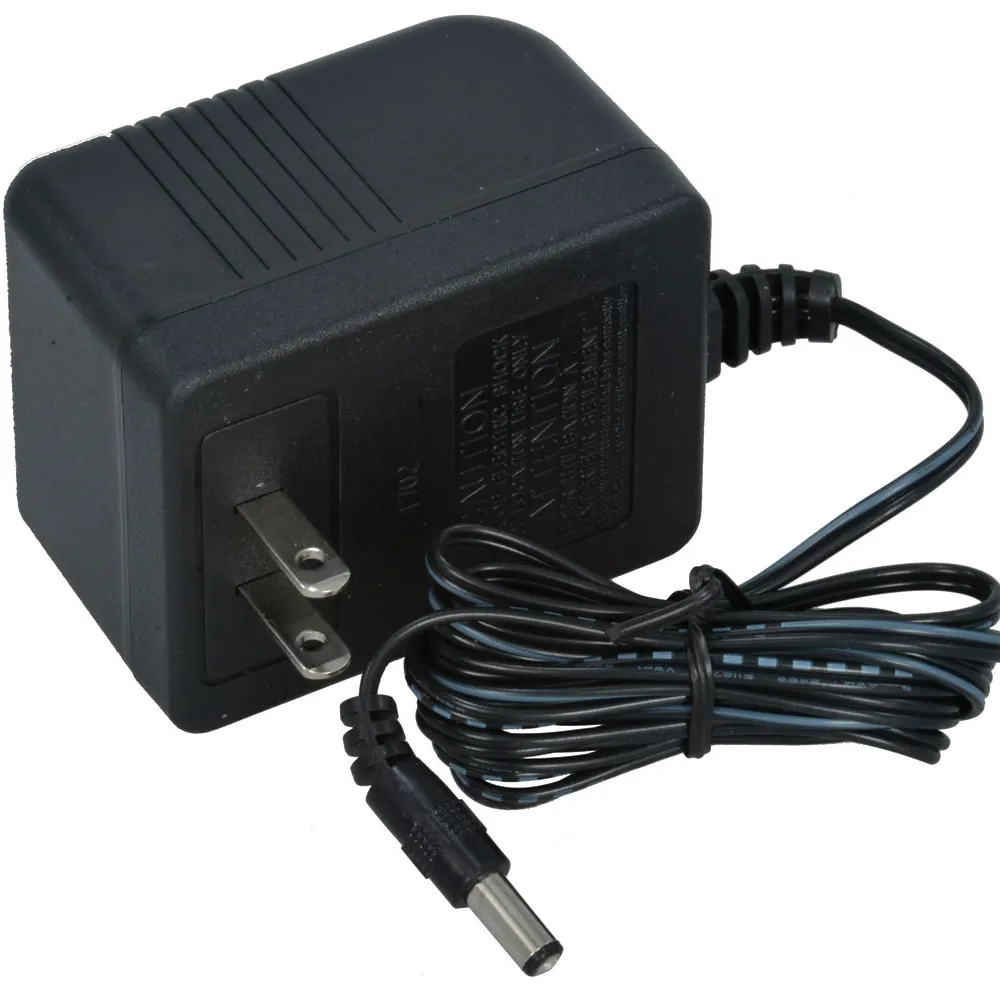

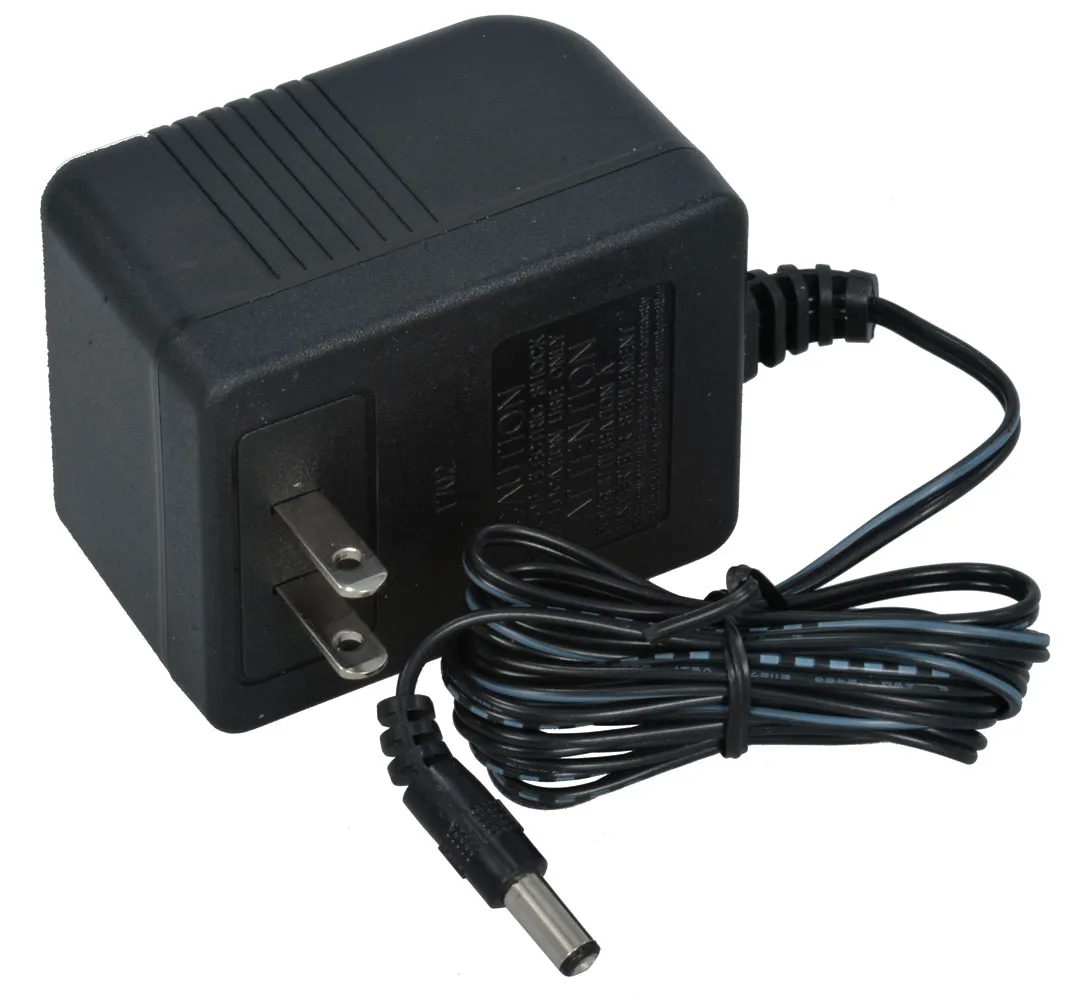

24VAC 1000mA Output AC-AC Wall Adapter with 2.1mm Plug

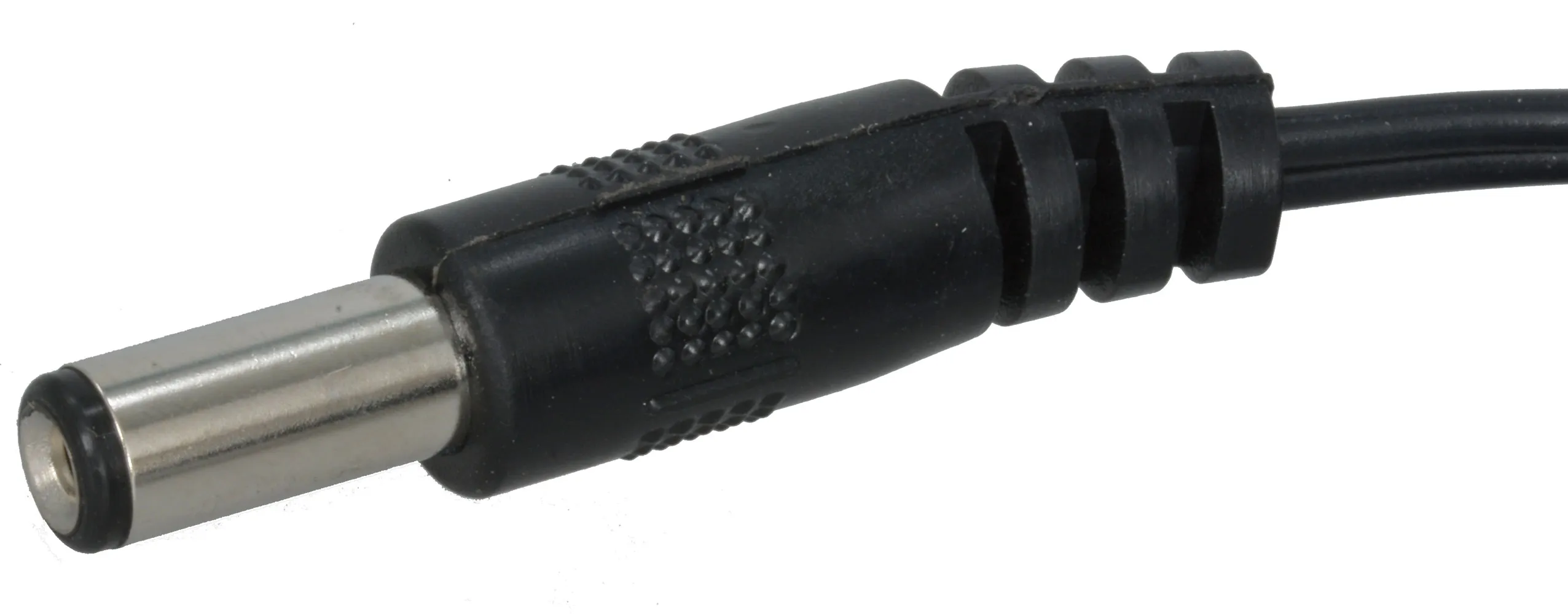

Output Connector Type: Female 2.1mm inside diameter / 5.5mm outside diameter straight plugFeatures
- Input Voltage: 120VAC @ 60Hz
- Output Rating: 24VAC @ 1000mA
- Size: 2.9"H x 2.2"W x 1.9"D
- Case color: Black
- Output cord length: 6 feet
- Weight: 1.2 lbs.
- Agency approvals: UL/CUL
Product Identification
Manufacturer Series:ReliaPro
Compliance
Agency Approvals: CUL, UL
Dimensions & Appearance
Color:Black
Weight:1.2 lbs.
Height:1.9 in.
Width:2.2 in.
Length:3.0 in.
Input
Input Voltage:120 VAC
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Connector Type:Cylindrical Female
Output Voltage:24 VAC
Output Current:1 A
Features
Primary Side Connection:NEMA 1-15P
AC Cord Length:6 ft.
Primary Frequency:60 Hz
Polarity:N/A
Power Rating:24 VA
