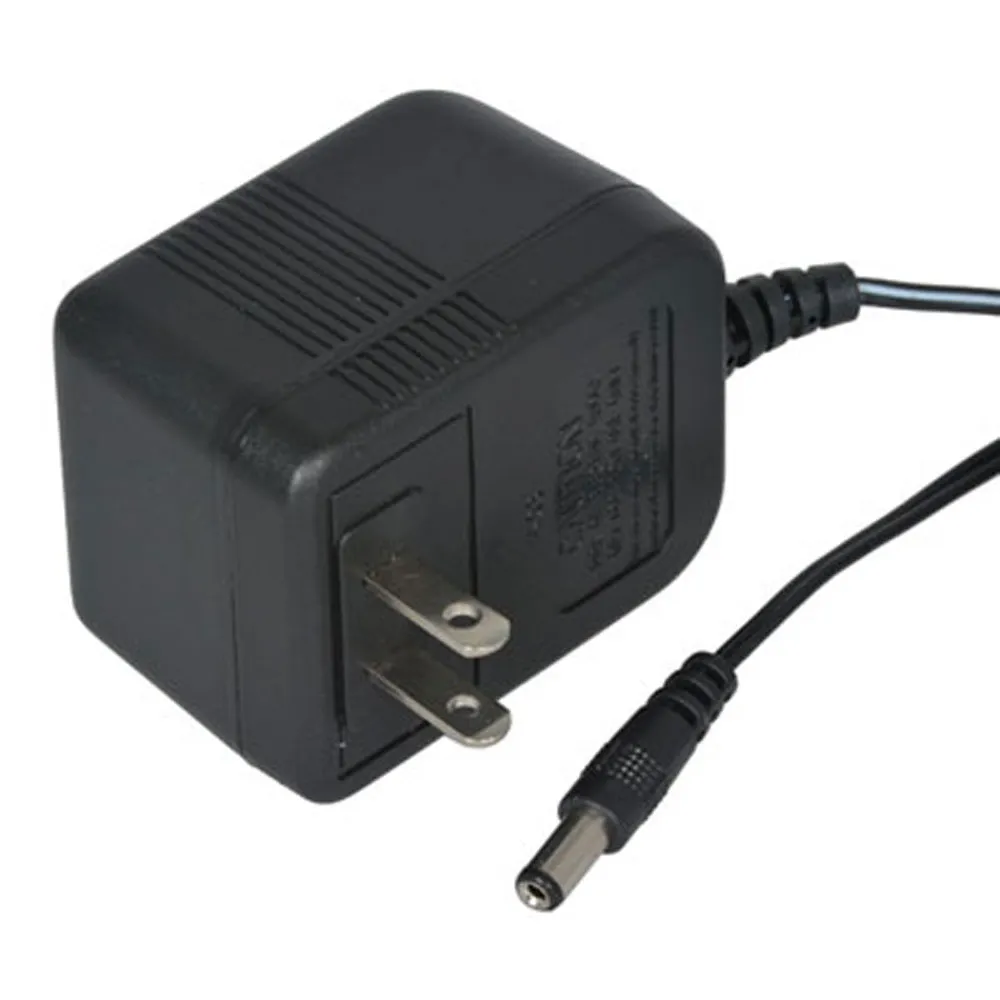

12VAC 500mA Output AC-AC Wall Adapter
Output Connector Type: Female 2.1mm inside diameter / 5.5mm outside diameter straight plug.Features
- Input Voltage: 120 VAC @ 60 Hz
- Output Rating: 12 VAC @ 500 mA
- Size: 2.5"H x 2.0"W x 1.7"D
- Case color: Black
- Output cord length: 6 feet
- Efficiency with No Load 40%
- Efficiency with Full Load 60%
- Weight: 0.6 lbs.
- Agency Approvals: UL/CUL
Product Identification
Manufacturer Series:ReliaPro
Compliance
Agency Approvals: CUL, UL
Dimensions & Appearance
Color:Black
Weight:0.6 lbs.
Height:1.7 in.
Width:2.0 in.
Length:2.5 in.
Input
Input Voltage:120 VAC
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:12 VAC
Output Connector Type:Cylindrical Female
Output Current:0.50 A
Features
Primary Side Connection:NEMA 1-15P
AC Cord Length:6 ft.
Primary Frequency:60 Hz
Polarity:N/A
Power Rating:6 VA
