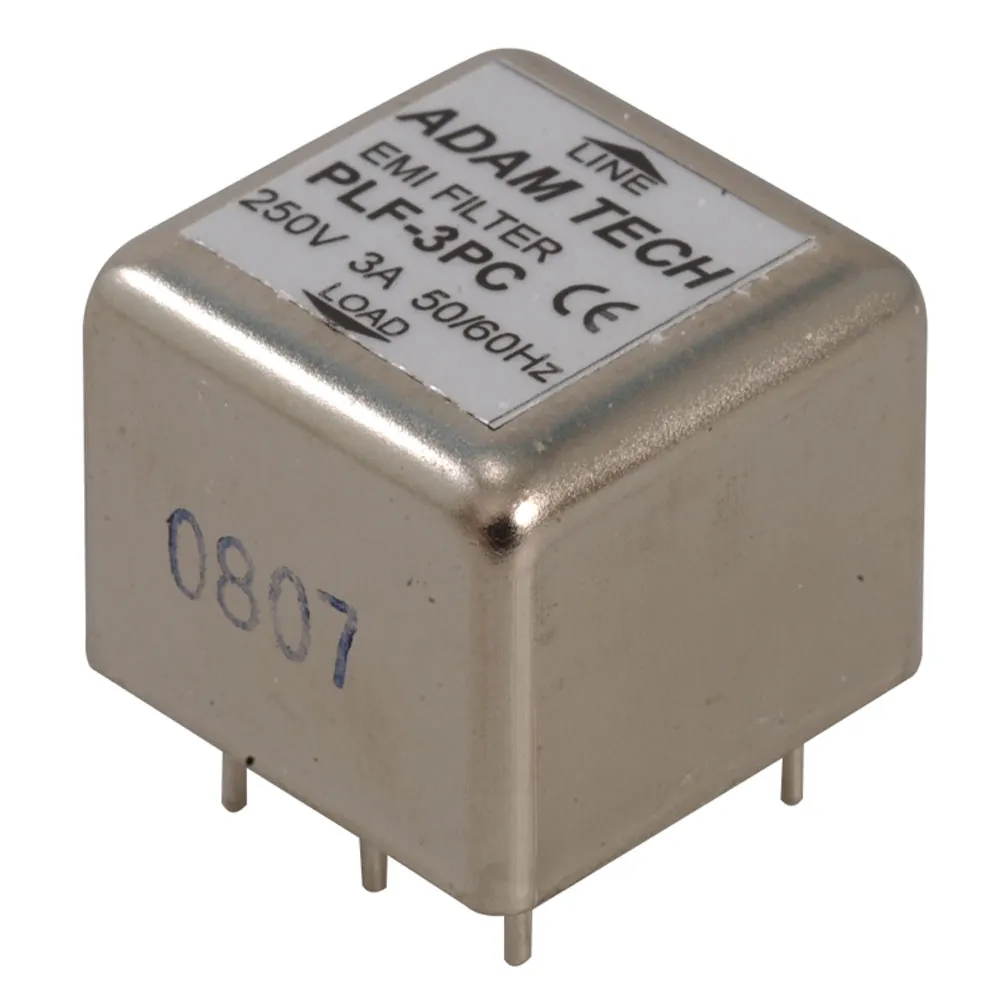

EMI/RFI Power Line Filter

These power line filters are designed for use in electric equipment that needs to meet FCC and other worldwide agency requirements for EMI/RFI emissions.

Features

• Compact space and cost effective
• Meets low leakage requirements
• Superior common mode and differential mode attenuation
• Metal case, PCB mount
• Rated current: 3 A
• Rated voltage: 250 VAC
• Ground capacitance: 2.2nF
• Terminals: Solder
• Terminal size: 0.039"
• Agency approvals: UL / CSA / VDE
• Insulation resistance: 3000MΩ min.
• Dielectric withstanding voltage: 1500V AC for 1 minute
• Leakage current: 0.5mA max 250V, 50Hz
