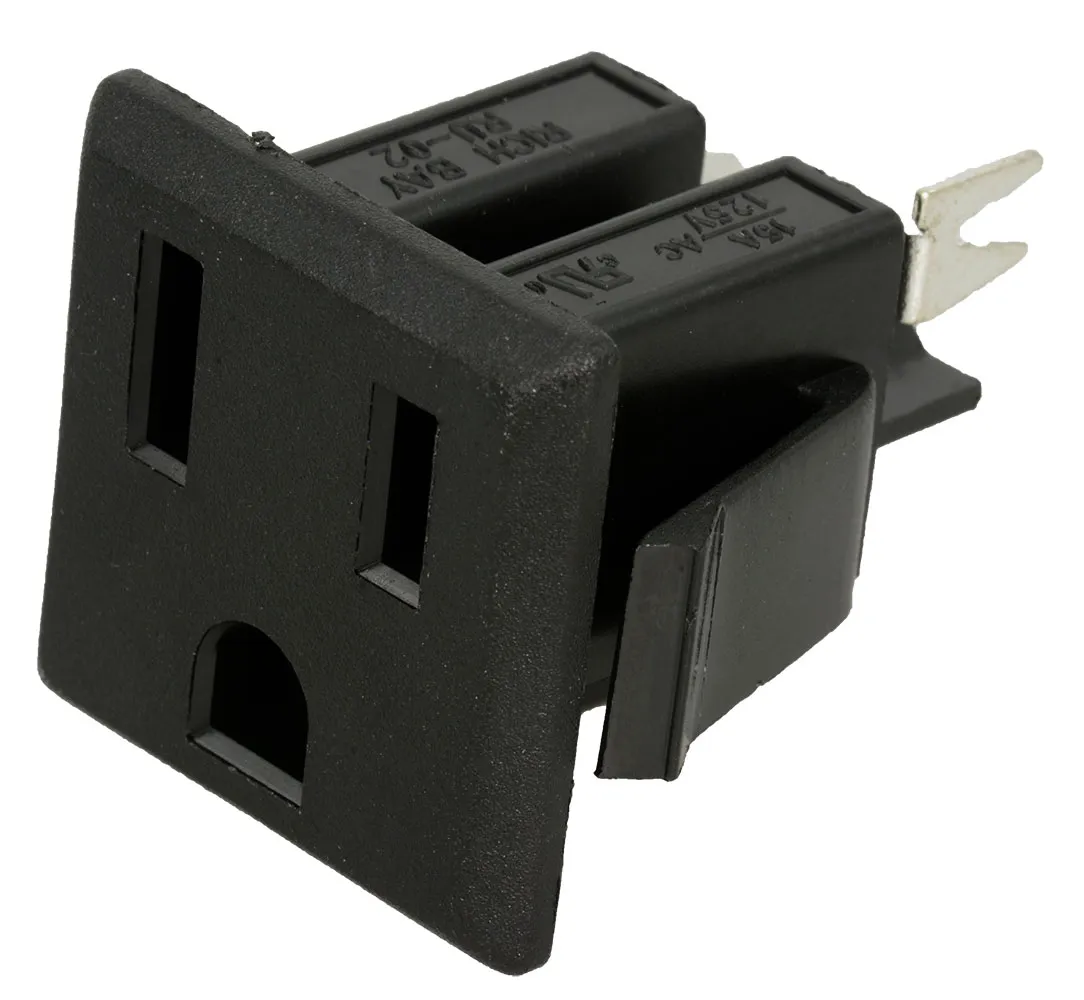

Male AC Power Outlet NEMA Receptacle

Features

  • NEMA 5-15R
  • Snap-in panel mount
  • Current rating: 15A
  • Hipot rating: 125V
  • Voltage rating: 125V
  • Fork terminals
  • Recommended wire size: 12-14 AWG
  • Agency approvals: UL/CSA/VDE

Product Identification

Product Type:Female Socket

Dimensions & Appearance

Body Orientation:Straight
Mounting Type:Panel Mount, Snap-In
Mounting Hole:Rectangular - 24.60mm x 24.60mm

Features

Fused:No
Filtered:No
Contact Gender:Female
Connector Type:NEMA 5-15R
Switch Function:Not Switched
Max Panel Thickness:2 mm, 0.079 in.
Voltage Rating:125 VAC
Termination:Fork terminals
Current Rating:15 A
,
