AC Inrush Current Limiter 28A Continuous 48A Inrush Limit 180-264VAC Terminal Block Mount

Features

• 48A inrush limiting current, 28A continuous
• 180 to 264 VAC input
• Integrated bypass relay, no simple NTC
• Internal thermal protection
• Installed on DIN Rail TS-35/7.5 or 15 (ICL-28R)
• -30°C to +70°C wide working temperature
• Over voltage category III
• Operating altitude up to 5000 meters
• 3 year warranty

Overview

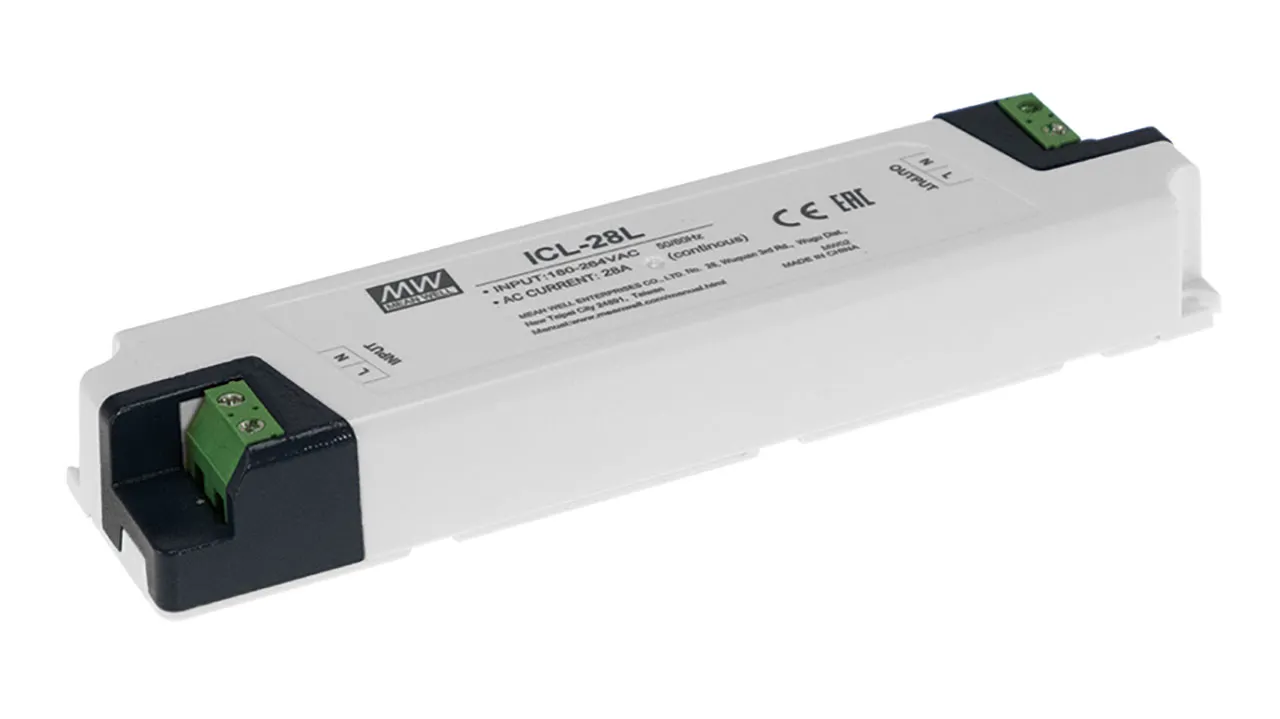

The ICL-28 is a 28 amp inrush current limiter that can be used to reduce the high starting current due to capacitive load causing the circuit breaker to be falsely triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.

Applications

• Allow connecting multiple power supplies on the same line
• Allows smaller and faster circuit breaker
• Capacitive load
• Protects against unintended trigger of circuit breaker
