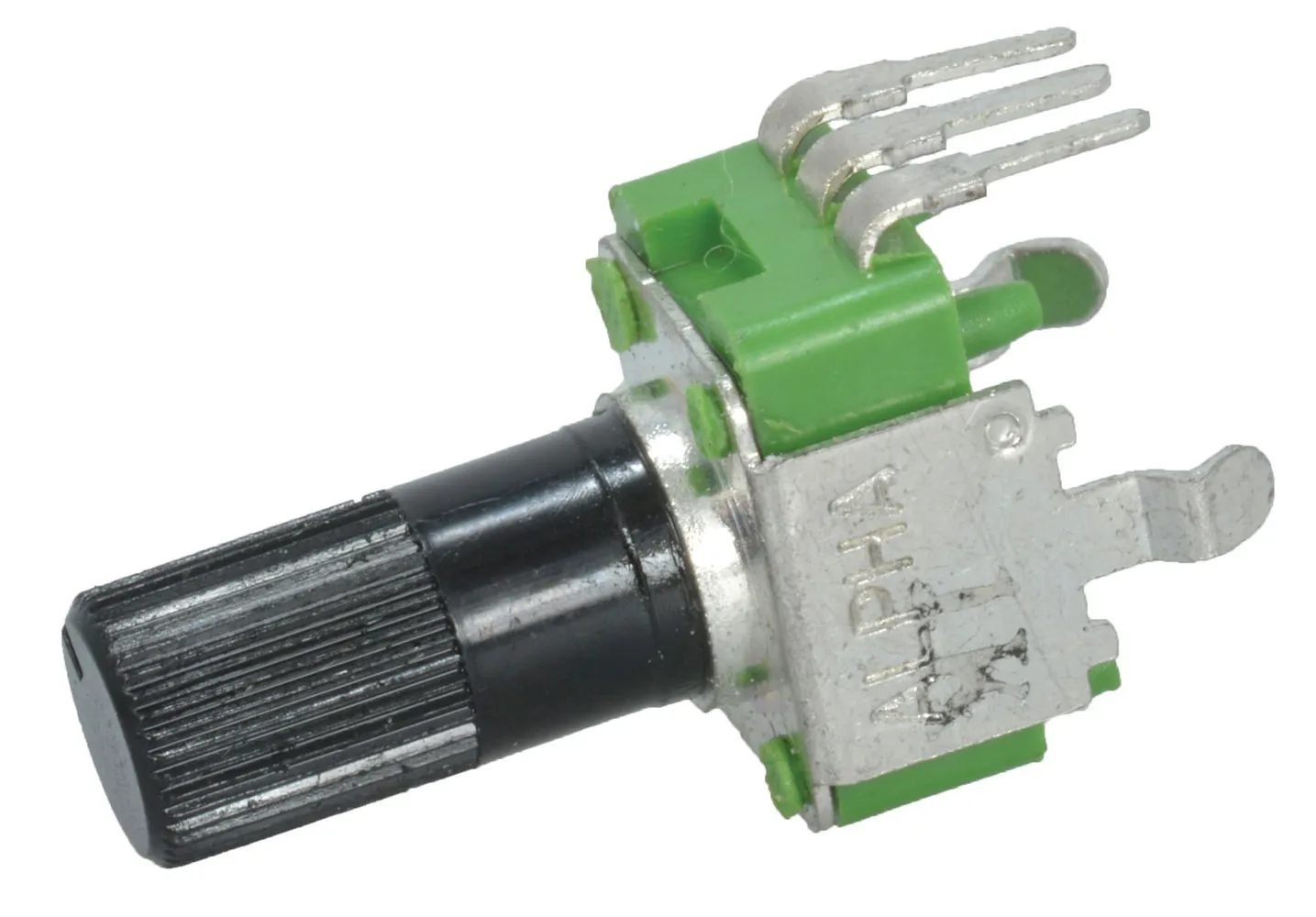

50mW 9mm 100k Ohm Linear Taper Potentiometer Snap-In
Features
- Shaft diameter: 0.236 in
- Shaft length: 0.787" (20 mm)
- Rated Voltage: 50VAC
- Rotational angle: 280°(±5°)
- Termination Style: PCB Terminals (Vertical)
- Rotation life: 10,000 cycles
- Tolerance: 20%
Product Identification
Manufacturer Series:RV09AF
Dimensions & Appearance
Shaft Style:Knurled
Shaft Diameter:0.250 in., 6.35 mm
Body Diameter:9 mm
Shaft Length:0.787 in.
Mounting:Vertical
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:70°C
Features
Ganging Number:1
Number of Turns:1
Taper:Linear
Resistance (Ohm):100000
Power Rating:0.05 W
Tolerance:20%
Termination Style:PCB, Snap-In
Resistance:100 KOhm
Voltage Rating:50 V
