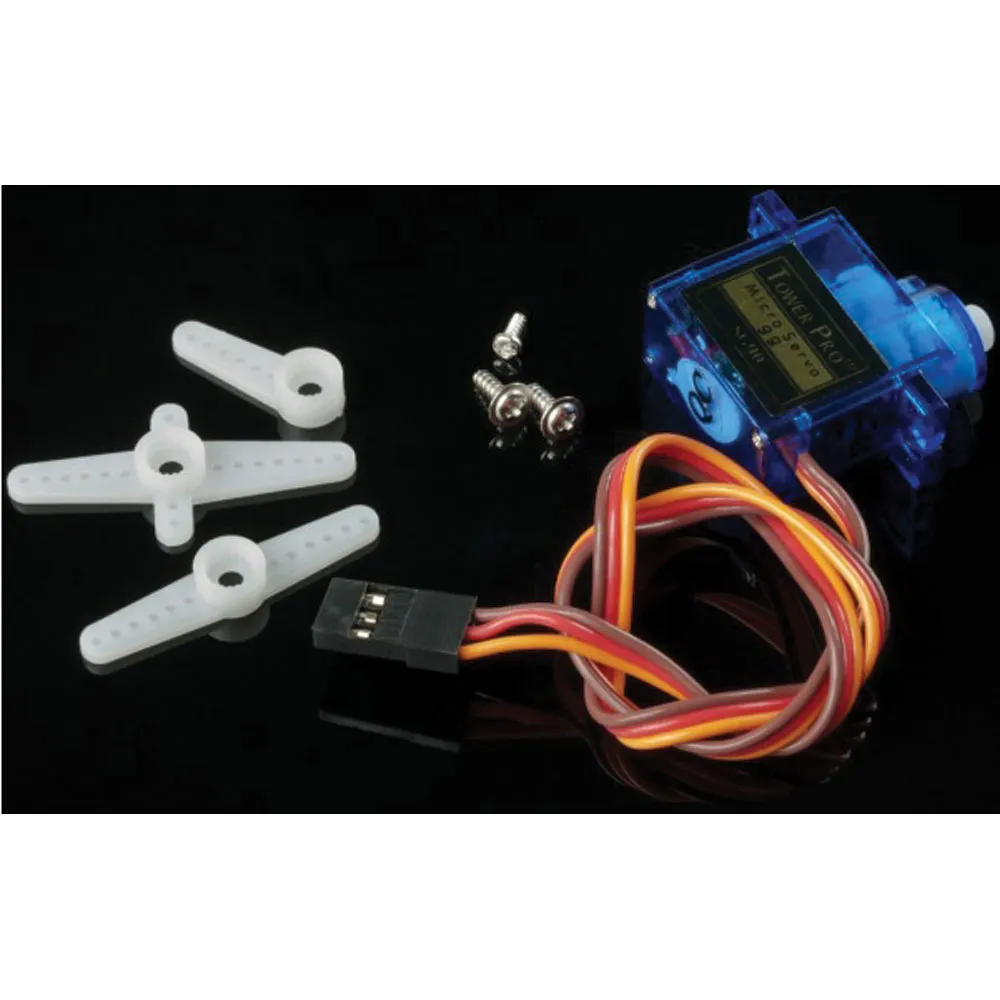

9g Micro Servo Motor

This is the most mini servo. Only weights 9 gram and gives you a 1.6kg.cm torque. Pretty strong regarding its size. Suitable for Beam type robot.

Specifications

  • No load speed: 0.12 seconds / 60 degrees (4.8V)
  • Stall Torque: 1.6 kg / cm (4.8V)
  • Operating temperature: -30 to +60 degrees Celsius
  • Dead Set: 7 microseconds
  • Operating voltage: 4.8V-6V
  • Working current: less than 500mA
  • Cable length: 180mm
  • Size: 22mmx12.5mmx29.5mm
  • Weight: 9 grams

Find out more about how servo motors work.

Dimensions & Appearance

Width:0.5 in.
Height:1.2 in.
Length:0.9 in.

Features

Rotation:Clockwise
Direction Type:180 Degree
No-Load Speed (4.8V):0.12 sec/60°
Stall Torque (4.8V):22 oz.in (1.6 kg.cm)
Current Drain mA- Idle/No Load:<500 mA
Stall Torque (6.0V):-
Motor Drive Type:Sub-Micro Servo
,
