9g 2 kg.cm Micro Servo Motor

This Micro Servo is ideal for applications where small weight and size are a key factor. The servo uses standard PWM control signals and operates from 4.8V - 6V with a power consumption of <500mA.

Specifications

  • Weight: 9g
  • Size: 23 x 12.3 x 25.6 mm
  • Torque: 1.5 kg.cm @ 4.8V; 2.0 kg/cm @ 6V
  • Speed: 0.08sec/60°
  • Gear Type: Plastic
  • Motor Type: Coreless
  • Operating Voltage Range: 4.8V-6V
  • Operating Temperature Range: 0°-60°
  • Current: < 500mA
  • Wire Length: 170mm

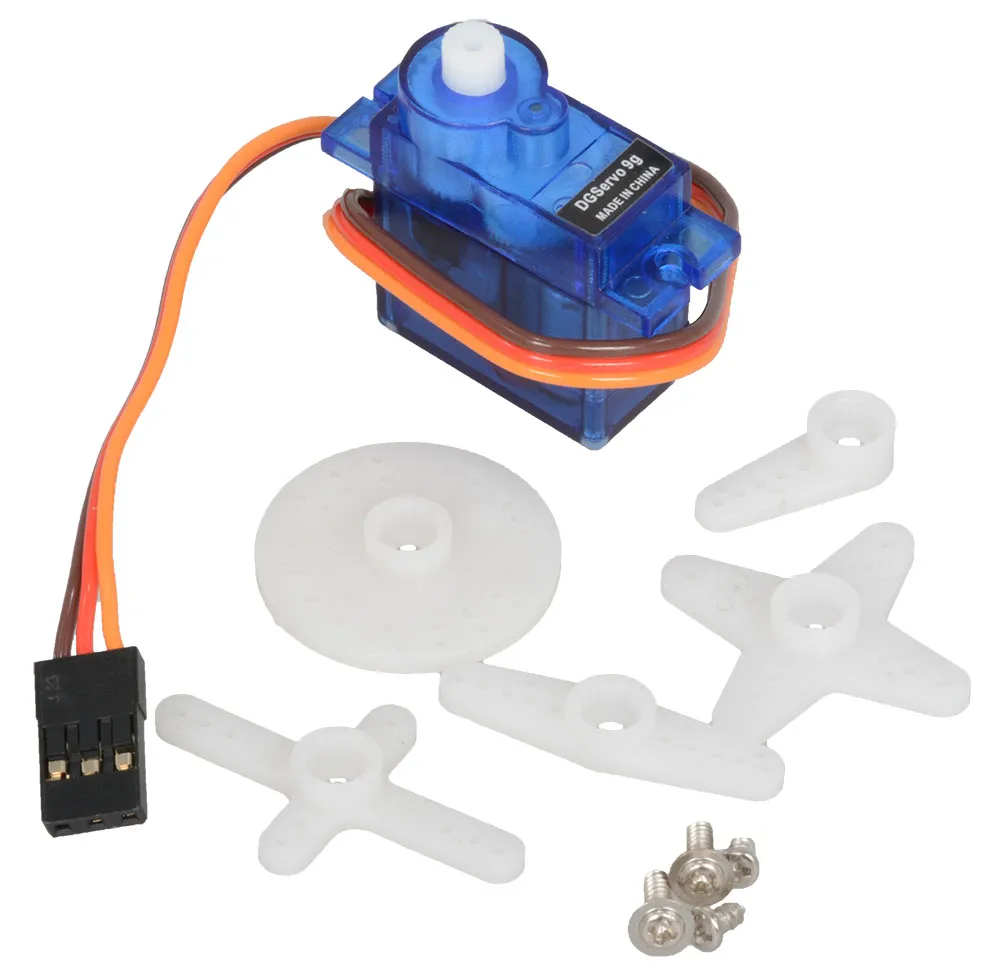

  • Includes: 5 servo arms.

Find out more about how servo motors work.

Dimensions & Appearance

Width:0.5 in.
Height:1.1 in.
Length:1.3 in.

Features

Rotation:Clockwise
No-Load Speed (4.8V):0.08 sec/60°
Direction Type:180 Degree
Stall Torque (4.8V):20.83 oz.in (1.5 kg.cm)
Stall Torque (6.0V):27.77 oz.in (2.0 kg.cm)
Current Drain mA- Idle/No Load:<500 mA
Motor Drive Type:Sub-Micro Servo
,
