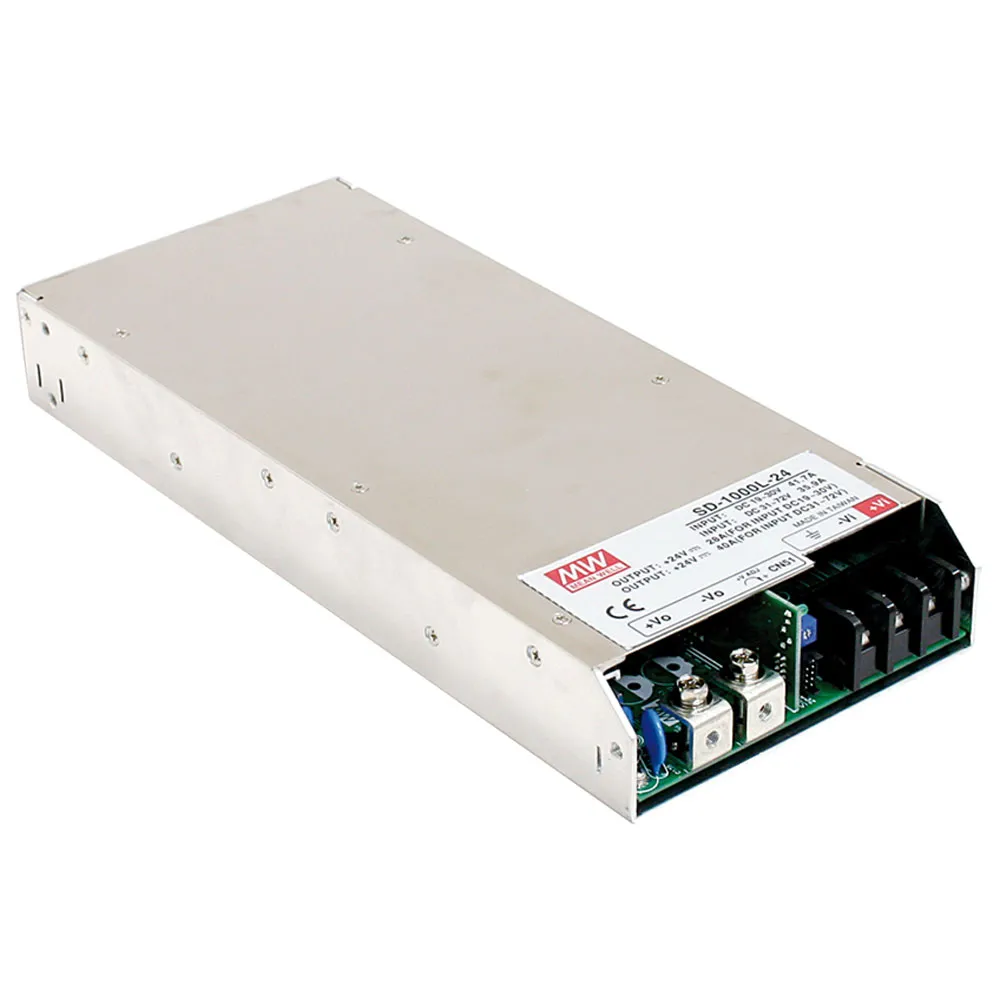

960W Single Output DC-DC Converter


Output: 24 Volts @ 40 Amps

Features:
  • Input voltage range: 72-144VDC
  • 1U low profile 41mm
  • High power density: 10.7 W/inch3
  • Built-in remote sense and remote on/off control
  • Cooling by built-in DC fan with speed control
  • Protection: Short-circuit, overload, over-voltage, over-temperature
  • 12V, 0.25A auxiliary output
  • 2000VAC I/O isolation
  • Efficiency: 89%
  • Size: 11.6"L x 5.0"W x 1.6"H
  • Weight: 4.27 lbs. (1.94 kg)
  • 3-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC to DC Power Supply SMPS
    Manufacturer Series:SD-1000

    Compliance

    Agency Approvals: CE, EAC, EN, CB, CB, CE, EN, EAC

    Dimensions & Appearance

    Mounting:Enclosed
    Height:1.6 in.
    Length:11.6 in.
    Width:5 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:60°C

    Packaging

    Package:Enclosed

    Input

    Input Voltage Range:72 VDC to 144 VDC
    Input Voltage:96 VDC
    Maximum Input Current:11.6 A

    Output

    Number of Outputs:1
    Output Connector Type:Screw Terminal Block
    Output Voltage:24 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:40 A

    Features

    Switching Regulator:Yes
    Pins:13
    Efficiency:89%
    Power Rating:960 W
    ,
