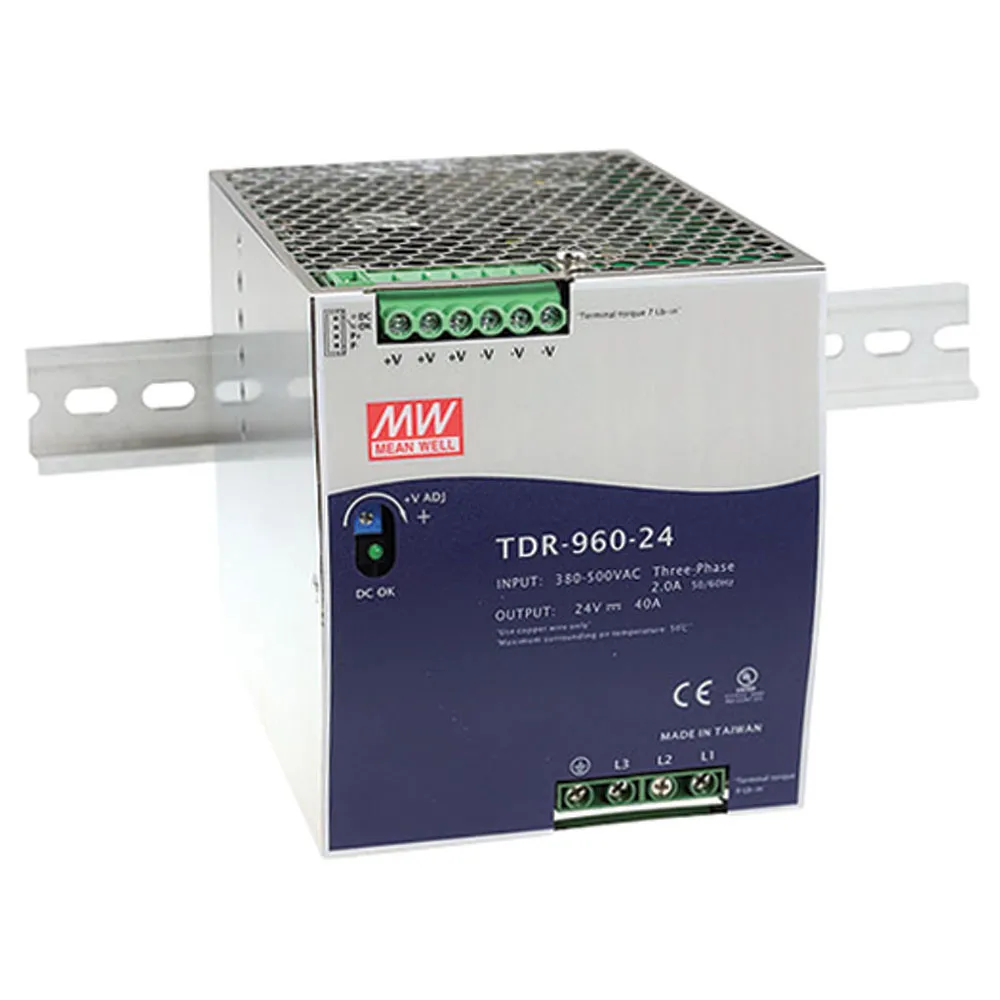

960 Watt Three Phase Industrial DIN RAIL Power Supply with PFC Function
24 Volts @ 40 AmpsFeatures
- Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
- Width only 110mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 94% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Current sharing up to 3840W(3+1)
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
Product Identification
Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:TDR-960
Compliance
Agency Approvals: CB, CE, EAC, EN, UL
Dimensions & Appearance
Color:Silver
Depth:4.33 in.
Width:4.93 in.
Height:5.91 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:340 VAC to 550 VAC
Maximum Input Current:2 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:40 A
Features
Low Power Source (LPS):No
PFC Function:Yes
Efficiency:94%
Power Rating:960 W
