92.5 mm x 92.5 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 125CFM 62dBA 12" Wires Tach Output and PWM | Jameco.com

Orion Fans

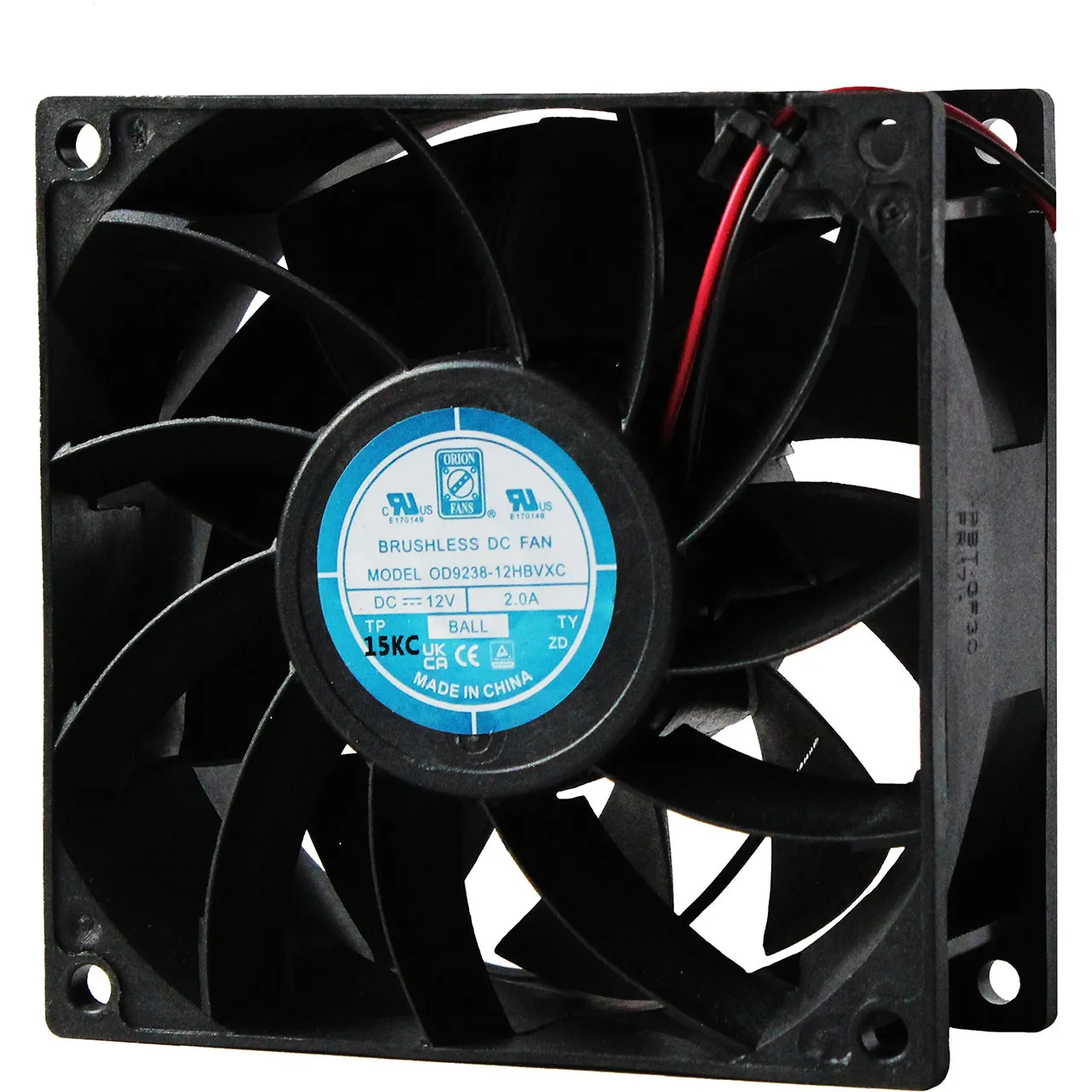

92.5 mm x 92.5 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 125CFM 62dBA 12" Wires Tach Output and PWM

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$27.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$27.850	-	-
10+	$25.550	2.30	8.26%
100+	$23.450	4.40	15.8%

92.5 mm x 92.5 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 125CFM 62dBA 12" Wires (4)

Features

Voltage Rating: 12 VDC
Height: 92.5 mm
Width: 92.5 mm
Depth: 38 mm
Air Flow (CFM): 125
Bearing: Ball
Current Rating: 2000 mA
Power Rating: 24 W
Agency Approvals: UL, CUL, TUV
Noise (dBA): 62
Termination: 12" Wires (4)
Product Type: 92mm x 92mm DC Fan
Speed: 5400 rpm
Maximum Pressure: 0.74 in.
Additional Features: Open Collector Tach Output and PWM
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 5400 rpm.
