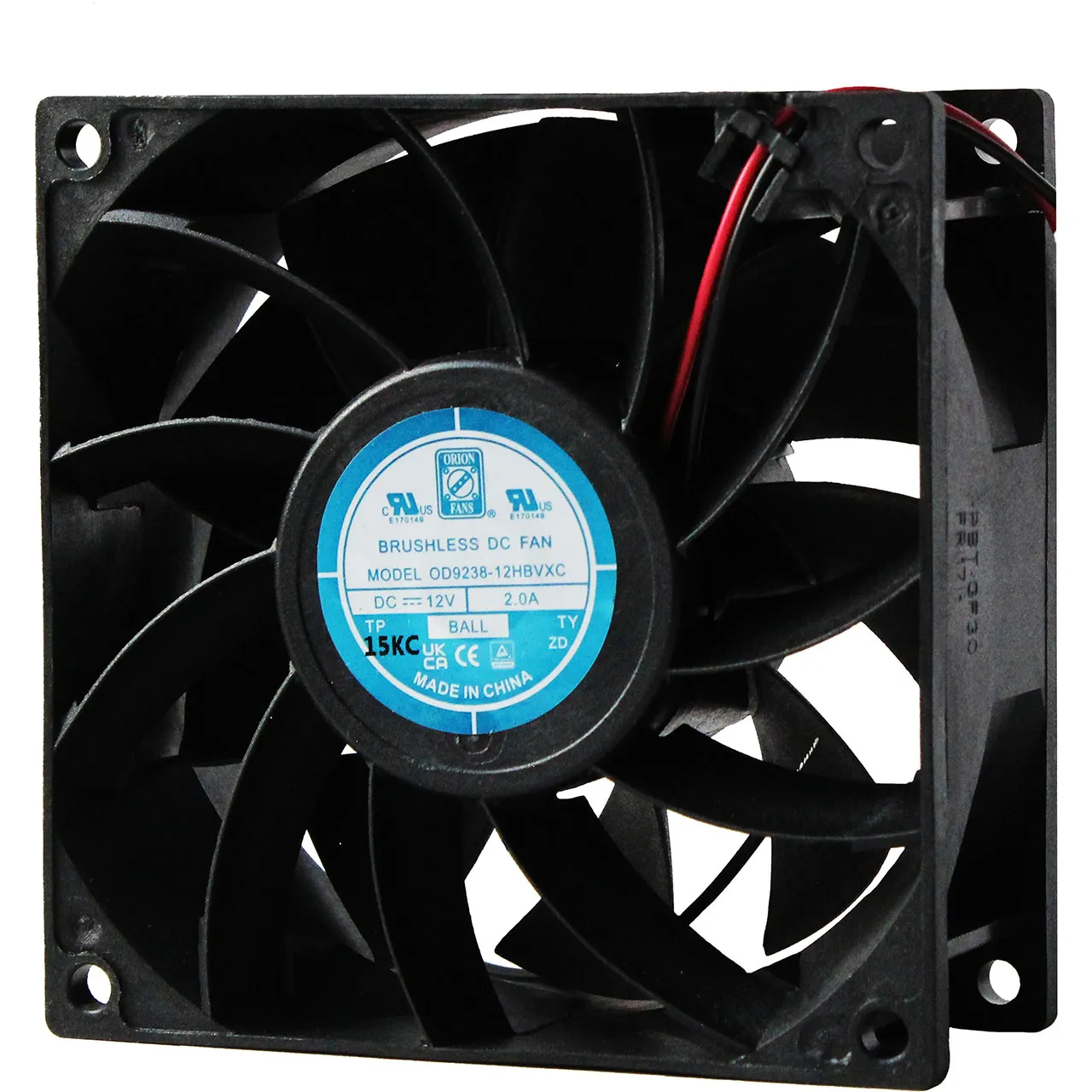

92.5 mm x 92.5 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 104CFM 58dBA 12" Wires
Features
- Voltage Rating: 12 VDC
- Height: 92.5 mm
- Width: 92.5 mm
- Depth: 38 mm
- Air Flow (CFM): 104
- Bearing: Ball
- Current Rating: 1500 mA
- Power Rating: 18 W
- Agency Approvals: UL, CUL, TUV
- Noise (dBA): 58
- Termination: 12" Wires
- Product Type: 92mm x 92mm DC Fan
- Speed: 4800 rpm
- Maximum Pressure: 0.56 in.
- Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected
Overview
Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 4800 rpm.
Product Identification
Product Type:DC Fan
Compliance
Dimensions & Appearance
Depth:38 mm
Height:92.5 mm
Width:92.5 mm
Features
Bearing:Ball
Air Flow (CFM):104
Motor Drive Type:Brushless DC, Auto Restart, Polarity Protected
Noise (dBA):58
Voltage Rating:12 VDC
Maximum Pressure:0.56 in.
Speed:4800 rpm
Termination:12" Wires
Power Rating:18 W
Current Rating:1500 mA
