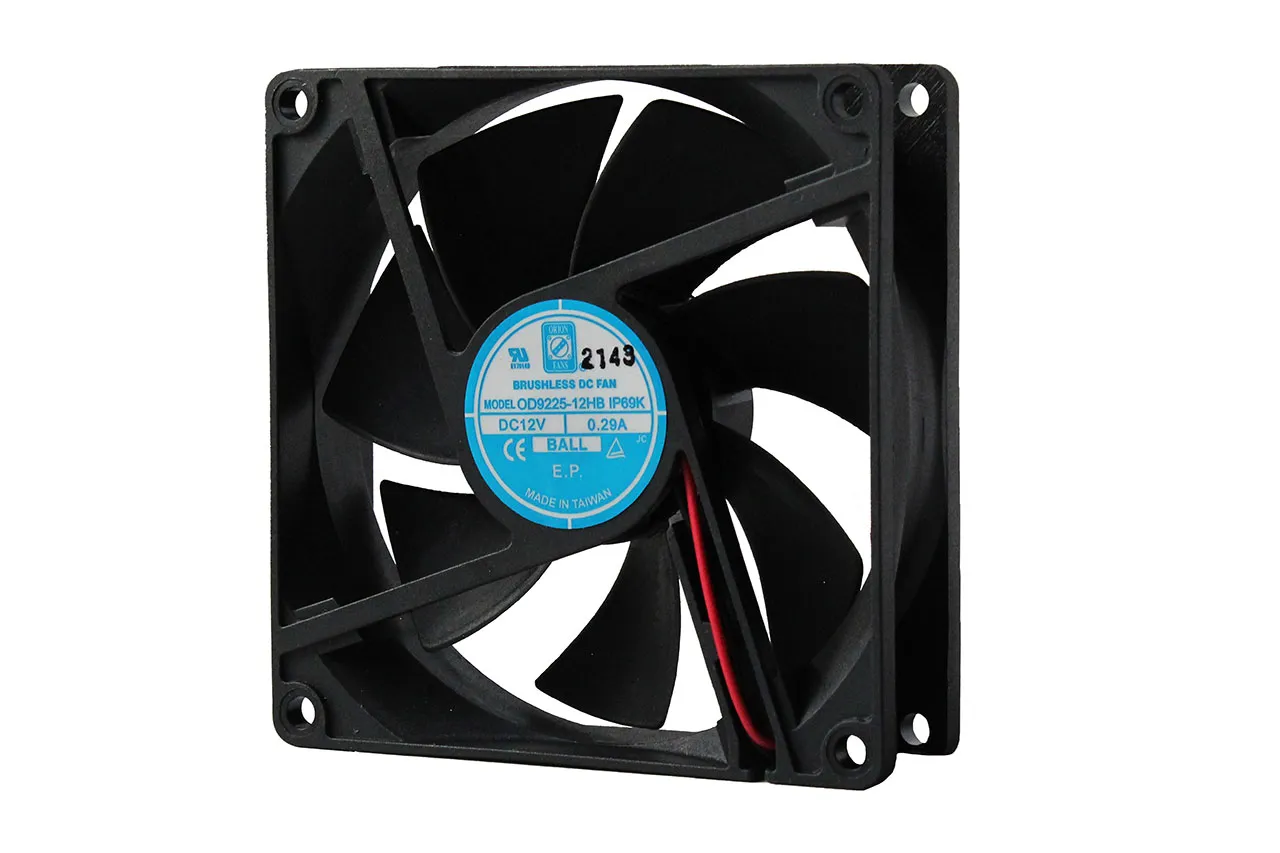

92 mm x 92 mm x 25 mm Tube Axial Fan 12 VDC Ball Bearing 50CFM 35dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$19.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
3+	$19.850	-	-
12+	$18.650	1.20	6.05%
48+	$17.450	2.40	12.09%

Features

Voltage Rating: 12 VDC
Height: 92 mm
Width: 92 mm
Depth: 25 mm
Air Flow (CFM): 50
Bearing: Ball
Current Rating: 290 mA
Power Rating: 3.48 W
Agency Approvals: UL, CUL, TUV, CE
Noise (dBA): 35
Termination: 12" Wires
Product Type: 92mm x 92mm DC Fan
Speed: 2900 rpm
IP Rating: IP69K
Maximum Pressure: 0.24 in.
Motor Drive Type: Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2900 rpm.
