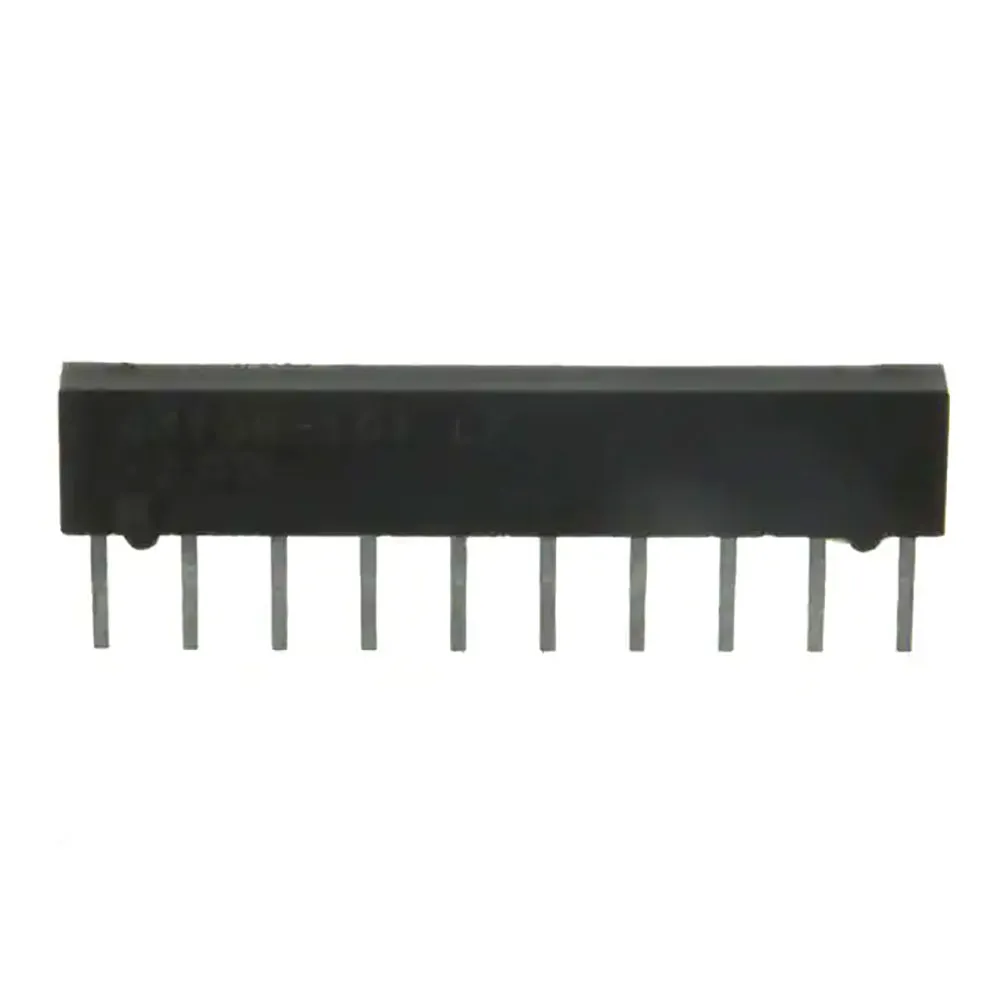

9 Resistor Network Array 56K Ohm 2% Bussed 200mW per Element SIP-10

Specifications

  • Series: 4300R, RSL10
  • Circuit Type: Bussed
  • Resistance (Ohms): 56K; 56000; 563
  • Tolerance: ±2%
  • Number of Resistors: 9
  • Resistor-Ratio-Drift: 50 ppm/°C
  • Number of Pins: 10
  • Power Per Element: 200 mW
  • Temperature Coefficient: ±100 ppm/°C
  • Operating Temperature: -55°C to 125°C
  • Mounting Type: Through Hole
  • Supplier Package: 6-SIP
  • Size: 0.984" L x 0.085" W (24.99 mm x 2.16 mm)
  • Height - Seated (Max): 0.195" (4.95 mm)
  • Base Number: 4310R

Product Identification

Family:4300R

Features

Circuit Designator:Bussed
Power Rating per Resistor:0.200 W
Tolerance:2%
Number of Resistors:9
Number of Terminals:10
Technology:Thick Film
Power Rating:1.25 W
Resistance (Ohm):56000
Resistance:56 KOhm
,
