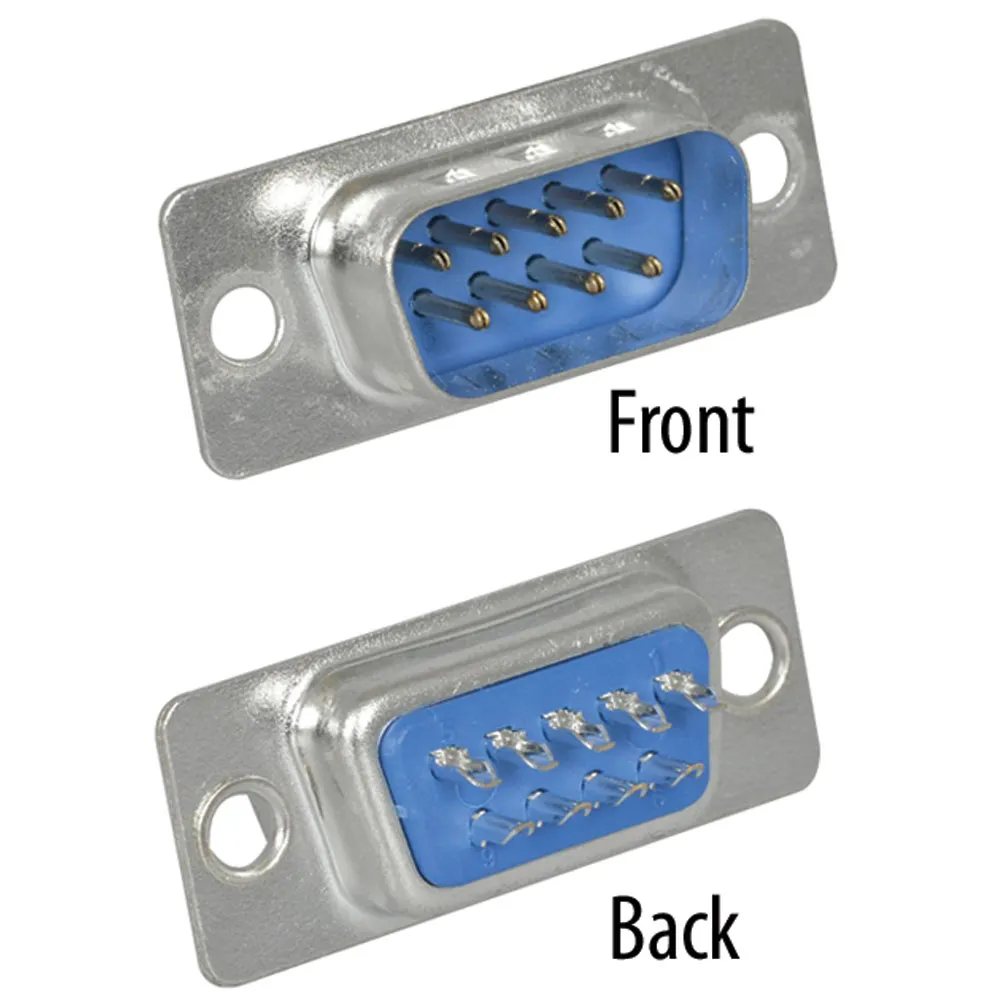

9 Position Male Pin D-Subminiature Connector

Features

  • DE9 (DB9)
  • Male pins
  • RoHS compliant
  • 22AWG
  • Solder cup

Product Identification

Manufacturer Series:1001
Product Type:Solderable Cup

Dimensions & Appearance

Body Orientation:Straight
Mounting:Unthreaded
Height:12.55 mm
Length:30.81 mm
Body Plating:Tin Over Nickel

Features

Number of Rows:2
Contact Material:Brass
Shell Material:Metal
Number of Contacts:9
Contact Plating:Gold
Gender:Male
Housing Material:Steel
Pitch:2.77 mm
Termination:Cable Mount
Voltage Rating:250 VAC
Current Rating:5 A
,
