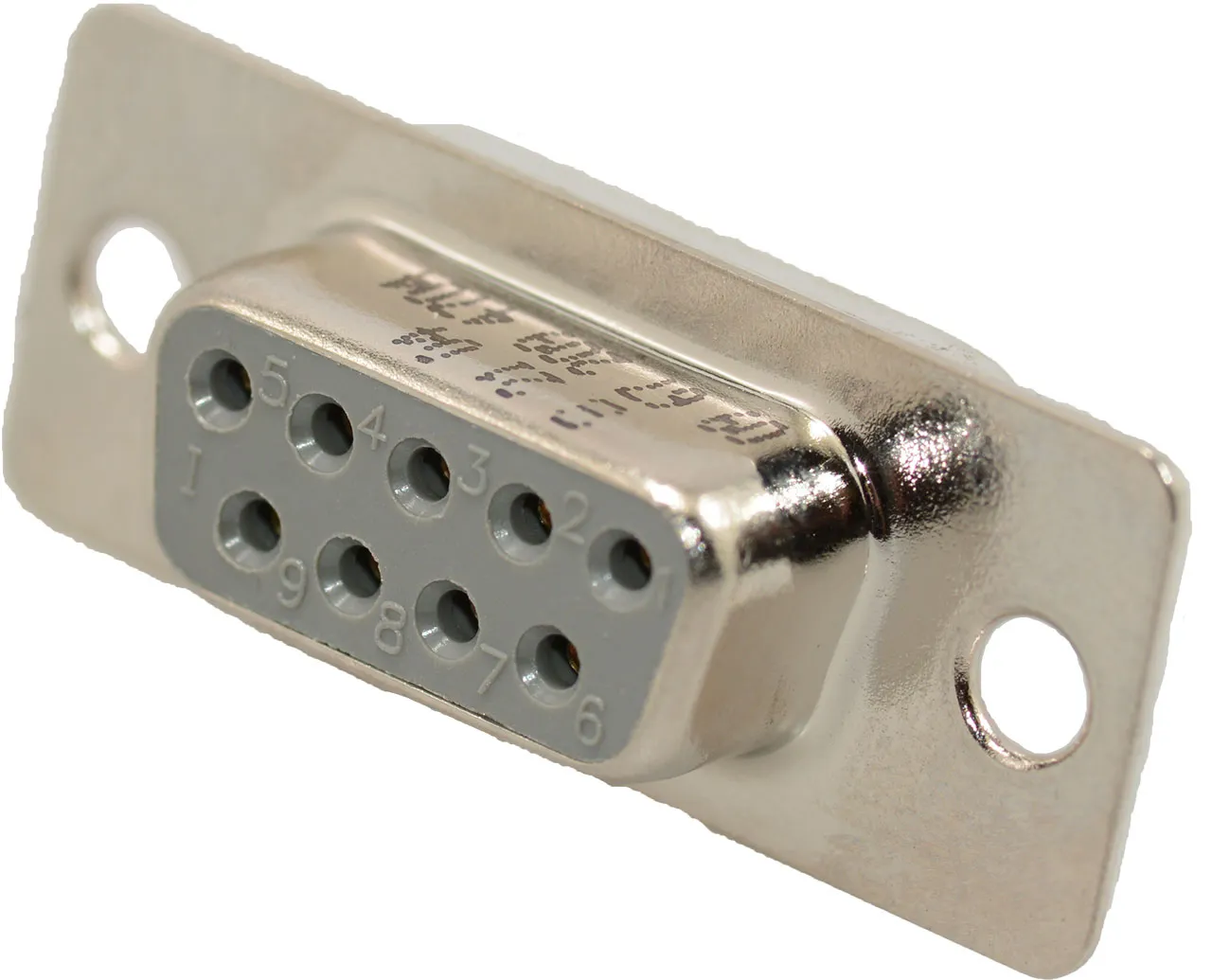

9 Position D-Sub Receptacle Female Sockets DE9 Connector

Features

• Connector Style: D-Sub
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 9
• Number of Rows: 2
• Mounting Type: Free Hanging (In-Line)
• Shell Size, Connector Layout: 1 (DE, E)
• Contact Type: Signal
• Flange Feature: Housing/Shell (Unthreaded)
• Termination: Solder Cup
• Shell Material, Finish: Steel
• Material Flammability Rating: UL94 V-0
• Current Rating (Amps): 6.5 A
• Contact Form: Stamped
• Dielectric Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
• Wire Gauge: 20 AWG
• Contact Material: Copper Alloy
• Operating Temperature: -40°C to 85°C
