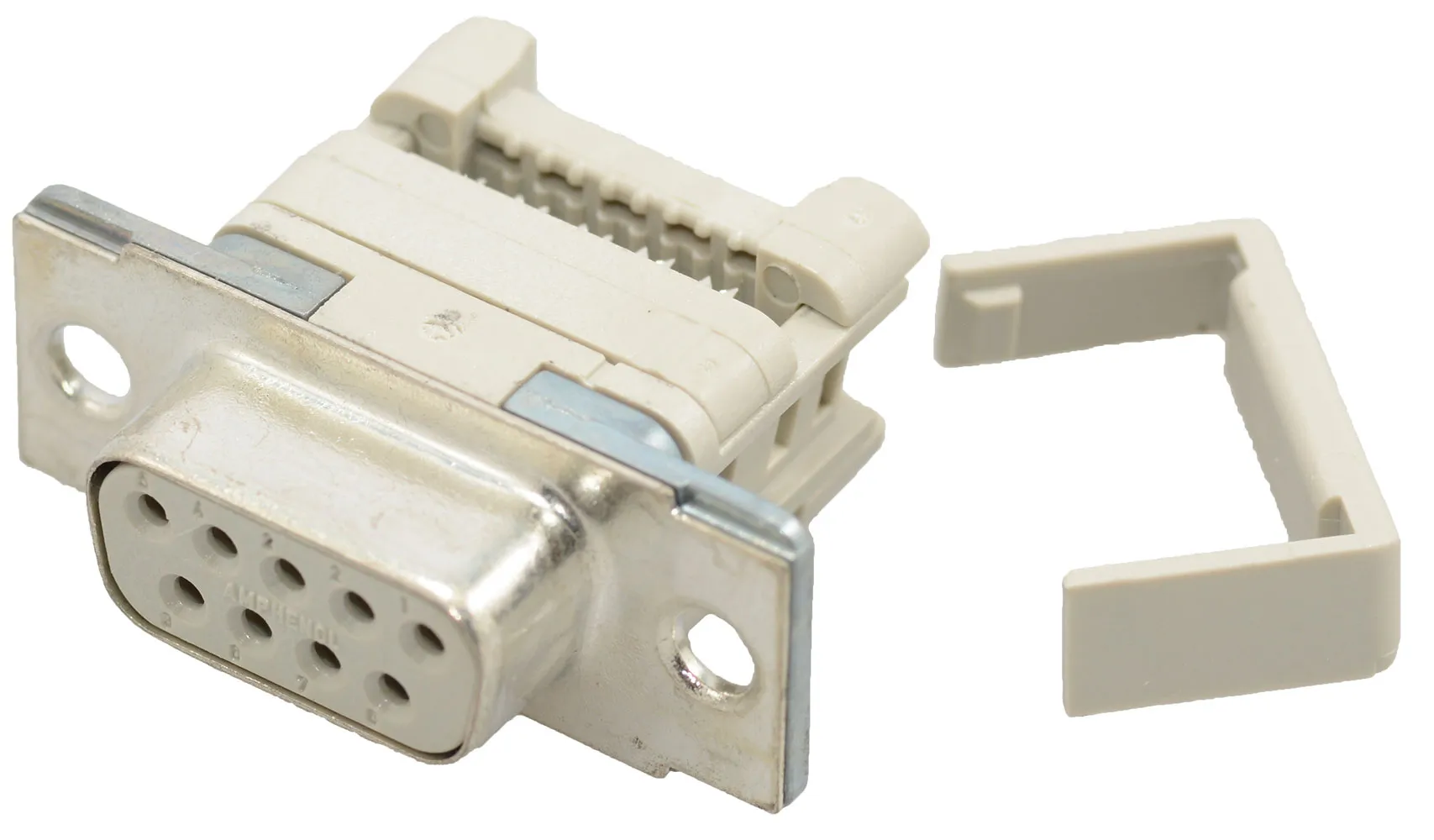

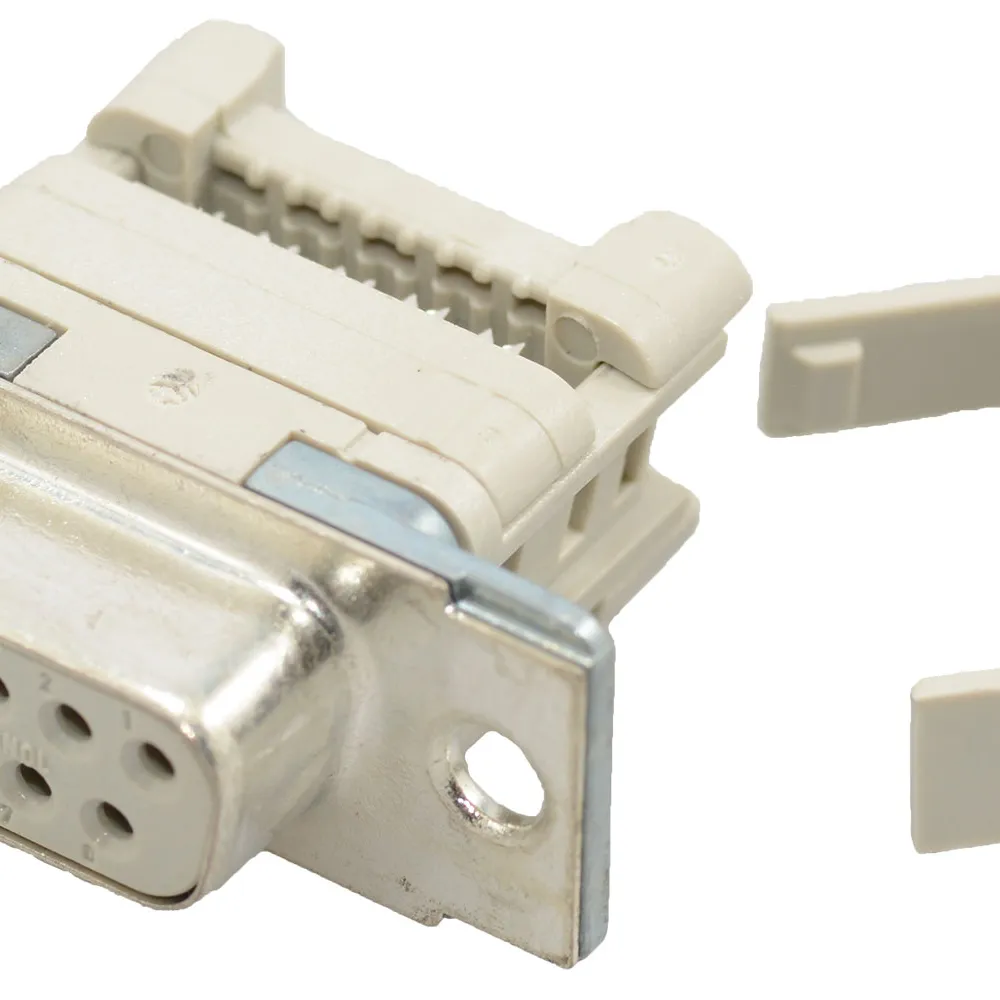

9 Position D-Sub Receptacle Female Sockets

Specifications

• Connector Style: D-Sub
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 9
• Number of Rows: 2
• Mounting Type: Free Hanging (In-Line)
• Shell Size, Connector Layout: 1 (DE, E); DB9, DE9
• Contact Type: Signal
• Flange Feature: Housing/Shell (Unthreaded)
• Termination: IDC, Ribbon Cable
• Shell Material, Finish: Steel, Tin Plated
• Contact Finish: Gold
• Contact Finish Thickness: Flash
• Material Flammability Rating: UL94 V-0
• Current Rating (Amps): 3 A
• Voltage Rating: 250 V
• Features: Feed Through, Strain Relief
• Color: Black
• Dielectric Material: Thermoplastic, Glass Filled
• Wire Gauge: 26 AWG
• Contact Material: Brass
• Operating Temperature: -55°C to 105°C
• Base Number: L17DEFRA09
