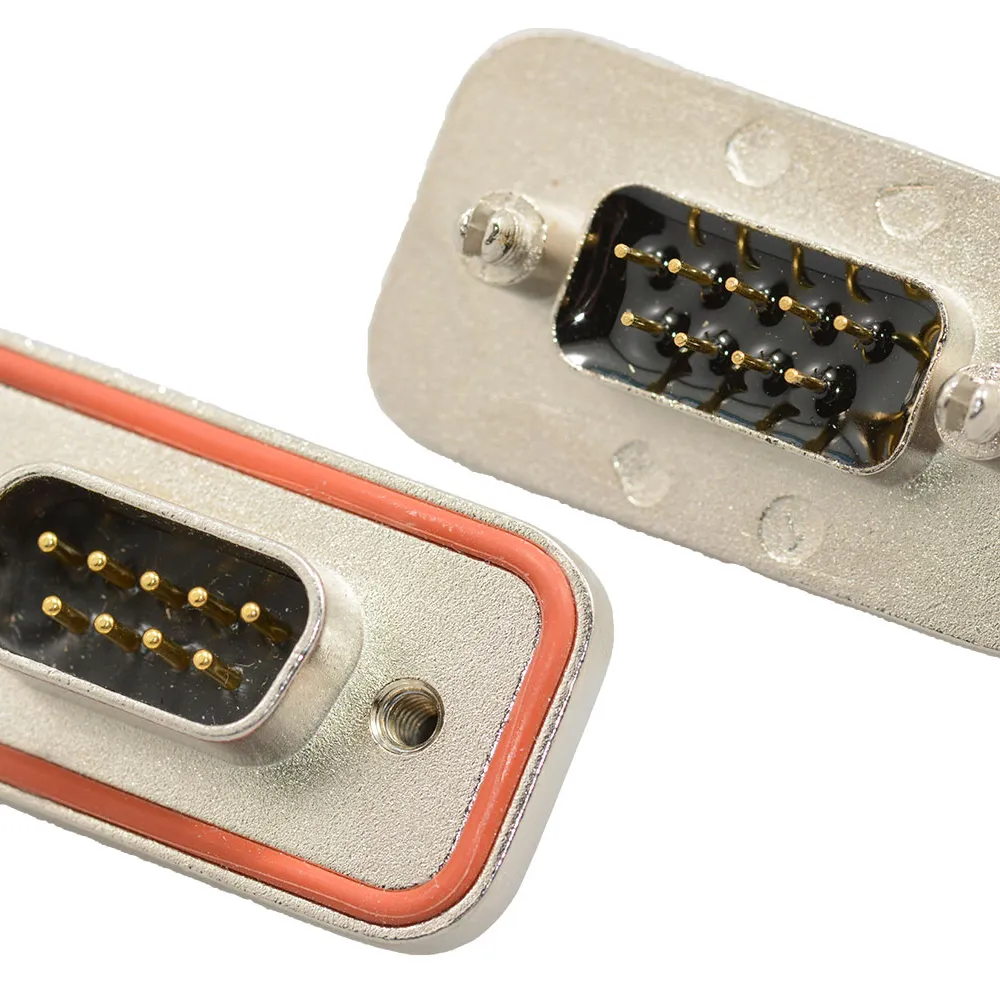

9 Position D-Sub Plug Male Pins Panel Mount IP67

Specifications

• Series: MDB
• Connector Style: D-Sub
• Connector Type: Plug, Male Pins
• Number of Positions: 9
• Number of Rows: 2
• Mounting Type: Panel Mount, Through Hole
• Shell Size, Connector Layout: 1 (DE, E)
• Contact Type: Signal
• Flange Feature: Board Side (4-40)
• Termination: Solder
• Shell Material, Finish: Zinc, Nickel Plated
• Contact Finish: Gold
• Contact Finish Thickness: 30 µin (0.76µm)
• Ingress Protection: IP67 - Dust Tight, Waterproof
• Material Flammability Rating: UL94 V-0
• Current Rating (Amps): 5 A
• Voltage Rating: 125 V
• Features: Board Lock
• Color: Black
• Dielectric Material: Thermoplastic
• Contact Material: Copper Alloy
• Operating Temperature: -40°C to 105°C
• Base Number: MDBE09
