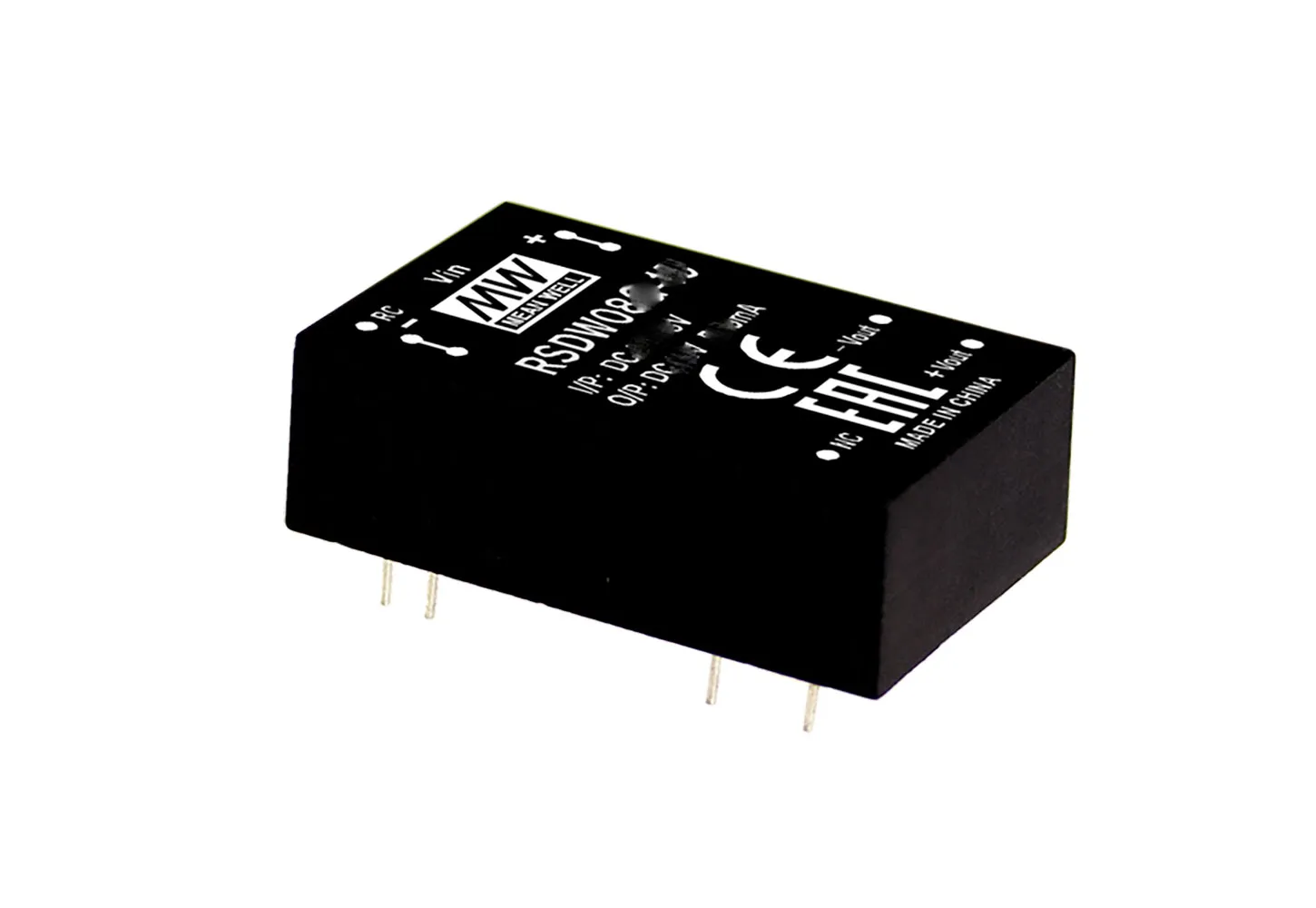

8W Reliable Railway DC-DC Regulated Converter DIP Package 24V Input 3.3V 2A Output

Output: 3.3 Volts DC @ 2 Amps

Features:

  • DIP24 package with industry standard pinout
  • 4:1 wide input range
  • No minimum load required
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 80%
  • Protections: Short circuit (Continuous) / Overload/ Over Voltage / Input Under voltage
  • 1.5kVDC I/O isolation
  • 3 year warranty

Applications

  • Telecom/Datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Bus, tram, metro or railway system
  • Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Product Identification

Type:Isolated
Product Type:DC-DC Reliable Railway Single Output SMPS
Manufacturer Series:RSDW08

Dimensions & Appearance

Height:0.40 in.
Width:0.80 in.
Length:1.25 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:0.344 A

Output

Number of Outputs:1
Output Voltage:3.3 VDC
Output Connector Type:DIP-24
Additional Output Voltages (VDC):N/A
Output Current:2 A

Features

Pins:9
Efficiency:80%
Power Rating:8 W
,
