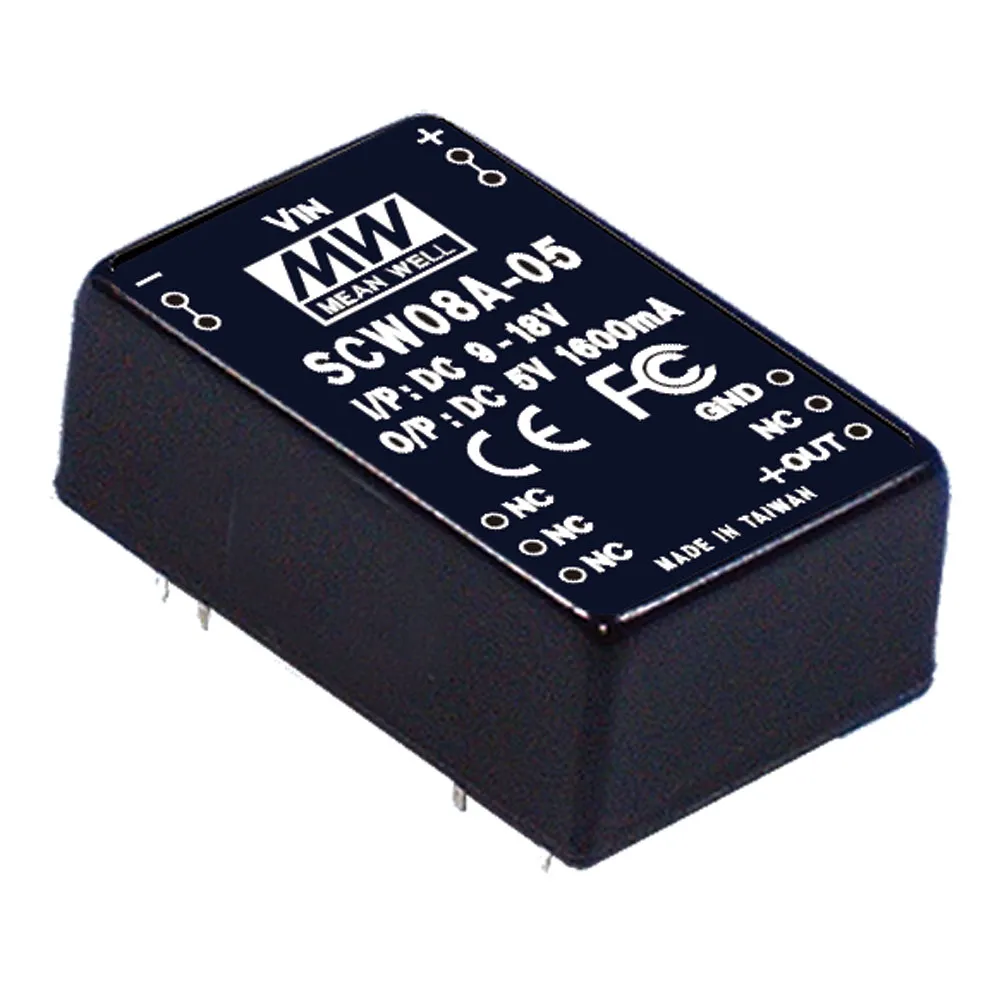

8W Regulated Single Output DC-DC Converter


Output: 5 Volts @ 1.6 Amps

Features:
  • Input voltage range: 9-18VDC
  • Input Pi network filter
  • Cooling by free air convection
  • 100% full load burn-in test
  • 1000VDC I/O isolation
  • Five-sided shielded metal case
  • Protections: Short-circuit, overload
  • Efficiency: 75%
  • Compact size: 1.25"L x 0.80"W x 0.48"H
  • Weight: 0.53 oz. (15 grams)
  • 1-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Single Output Converter SMPS
    Manufacturer Series:SCW08

    Dimensions & Appearance

    Height:0.48 in.
    Width:0.80 in.
    Length:1.25 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage Range:9 VDC to 18 VDC
    Input Voltage:12 VDC

    Output

    Number of Outputs:1
    Output Voltage:5 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:1.60 A

    Features

    Pins:8
    Power Rating:8 W
    ,
