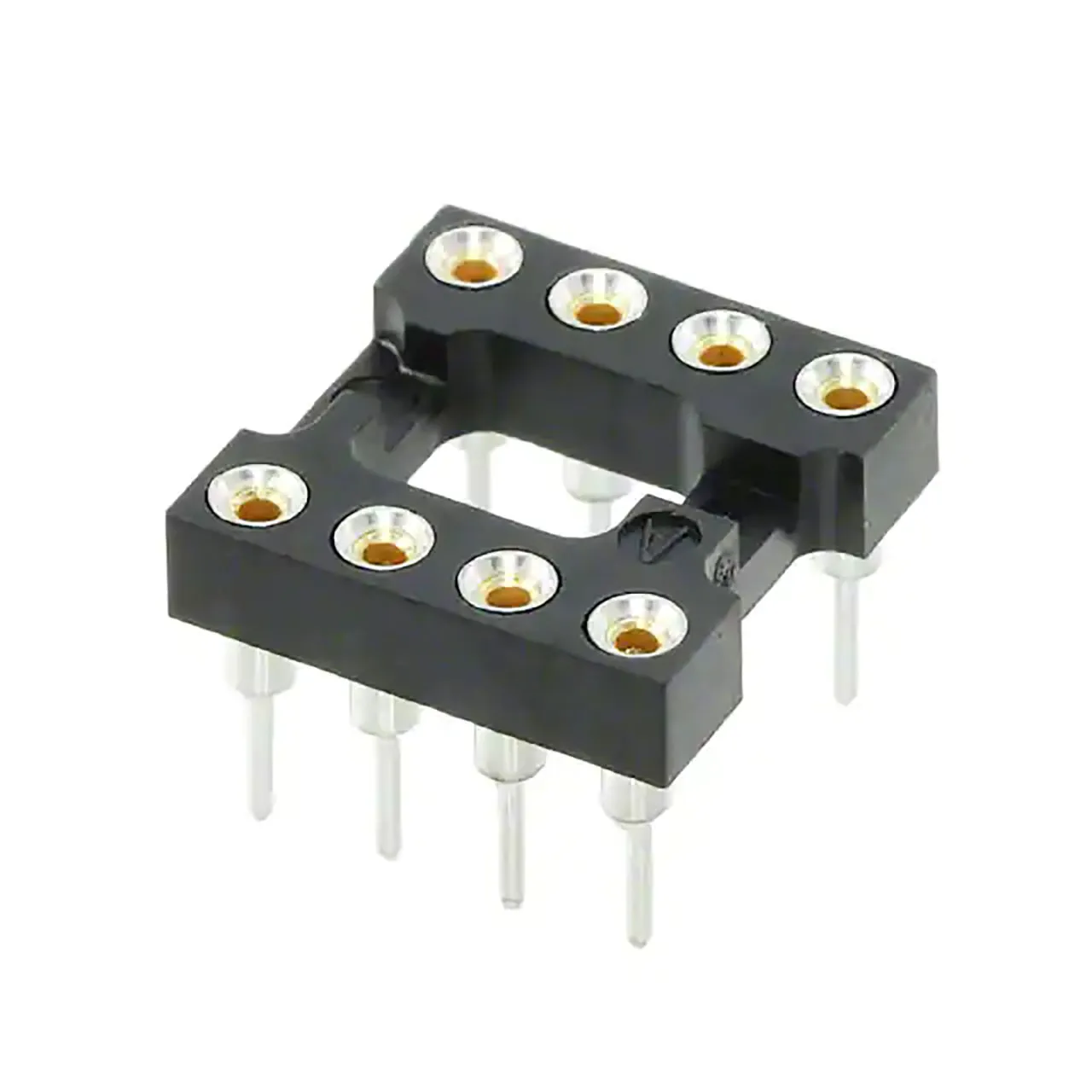

8-Position DIP Socket 0.3" (7.62mm) Row Spacing Gold Through Hole

Specifications

  • Type: DIP, 0.3" (7.62 mm) Row Spacing
  • Number of Positions or Pins (Grid): 8 (2 x 4)
  • Pitch - Mating: 0.100" (2.54 mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: Flash
  • Contact Material - Mating: Beryllium Copper
  • Mounting Type: Through Hole
  • Features: Open Frame
  • Termination: Solder
  • Pitch - Post: 0.100" (2.54 mm)
  • Contact Finish - Post: Gold
  • Contact Finish Thickness - Post: Flash
  • Contact Material - Post: Copper
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Operating Temperature: -55°C to 105°C
  • Termination Post Length: 0.125" (3.18 mm)
  • Material Flammability Rating: UL94 V-0
  • Contact Resistance: 10 mOhm
  • Base Number: 808

,
