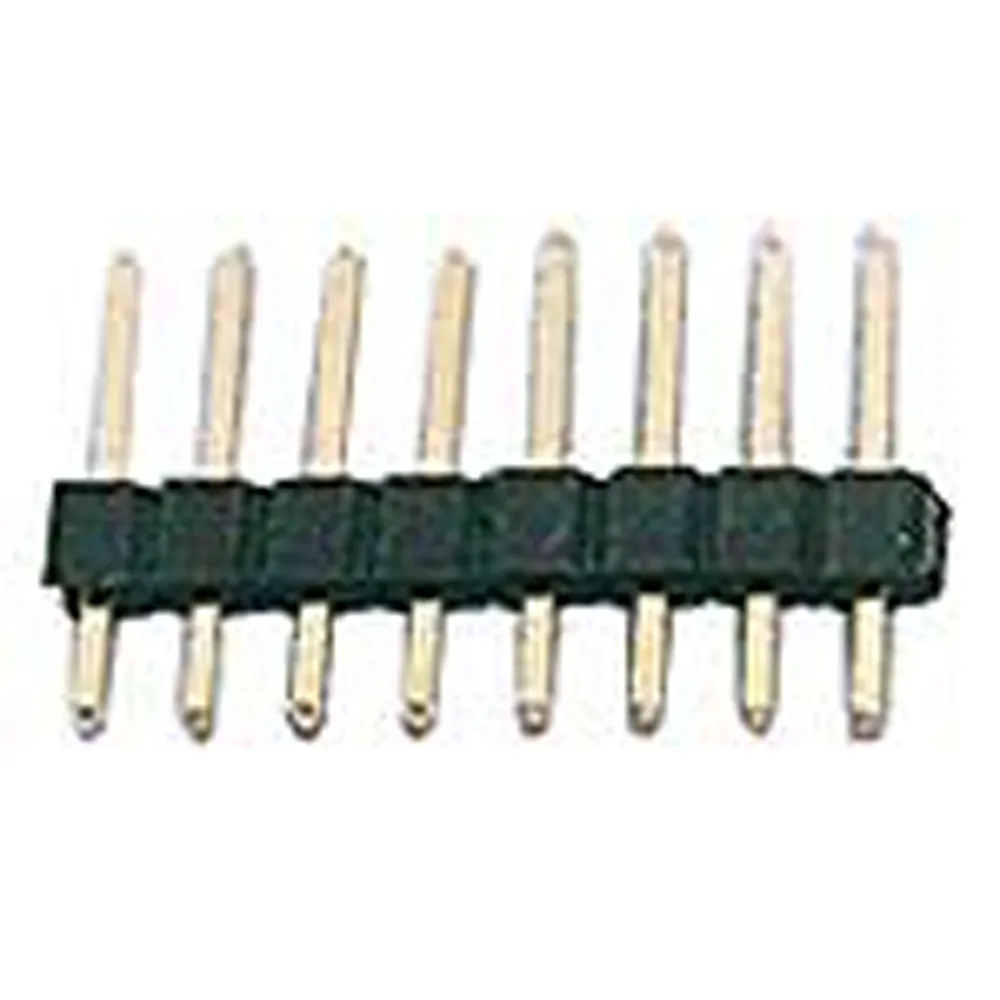

8-Pin 0.1" Straight Male Pin Header

Specifications

  • Single row, straight pin header
  • 0.1" pin spacing
  • 8 contacts
  • straight vertical square posts
  • 0.025" square posts
  • RoHS compliant
  • Gold tail

Dimensions & Appearance

Body Orientation:Straight

Features

Number of Rows:1
Board Mount Length:0.120 in.
Housing Color:Black
Contact Material:Brass
Contact Length:0.23 in.
Pitch:0.1 in., 2.54 mm
Number of Contacts:8
Contact Plating:Gold Over Nickel
Housing Material:Polybutylene Terephthalate
Gender:Male
,
