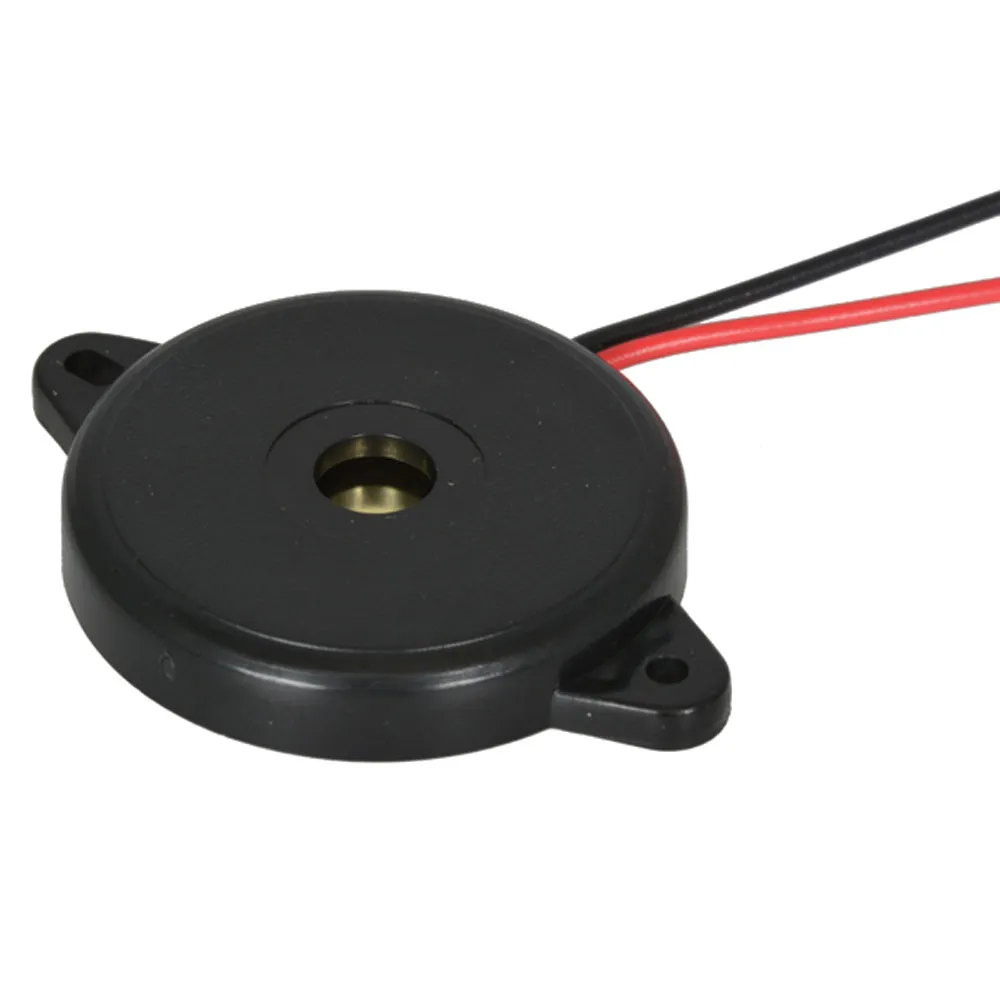

85dBA Piezo Transducer (Speaker)

Specifications

  • Rated Voltage: 3Vp-p (square wave)
  • Operating Voltage: 3-30 Vp-p
  • Max. Current: 5 mA (max.)
  • Resonant Frequency: 4000 Hz ±500
  • Sound Output: 85 dBA at 10cm (@ 3Vp-p 4.0KHz)
  • Dimensions: 5.5mm high x 30mm diameter

Dimensions & Appearance

Height:0.22 in.
Diameter:1.18 in.
Size (H" x Dia."):0.22 x 1.18
Mounting:Panel Mount

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Voltage:3 V

Output

Output:85 dBA

Features

Tone Mode:Transducer/Speaker
Technology:Piezo
Voltage Range (Vp-p):3-30
Frequency:4000 Hz
Termination Style:Wire Lead
Frequency Range:3500 Hz to 4500 Hz
Current Rating:5 mA
,
